Opus 6; Telefunken (ID = 93433) Radio
Telefunken: Opus 6 [Radio] ID = 93433 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Opus 6, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EF89 EM80 EABC80 EC92 EL84 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

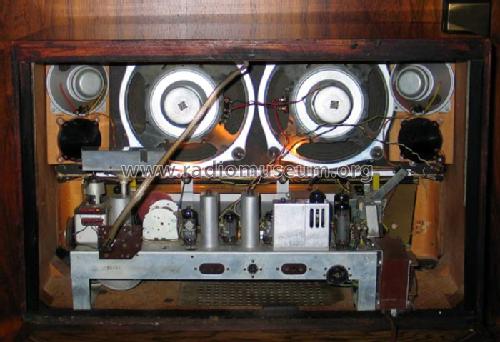

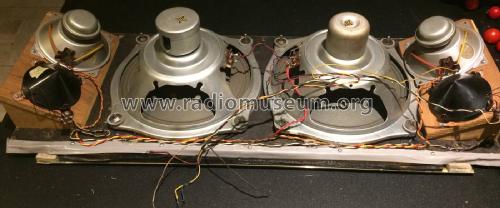

Loudspeaker 6 Loudspeakers
Power out 15 W (unknown quality)
from Radiomuseum.org Model: Opus 6 - Telefunken Deutschland TFK,
Material Wooden case

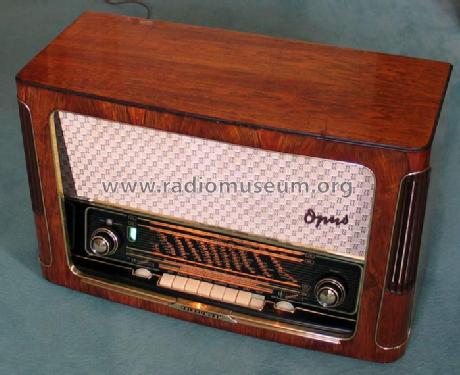

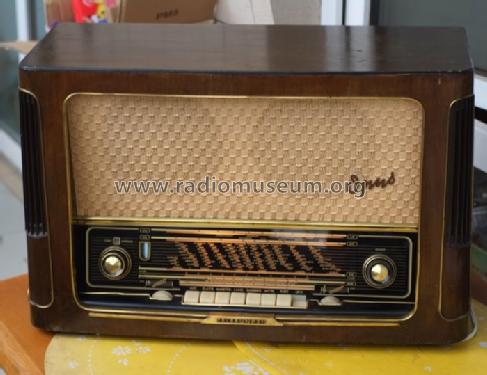

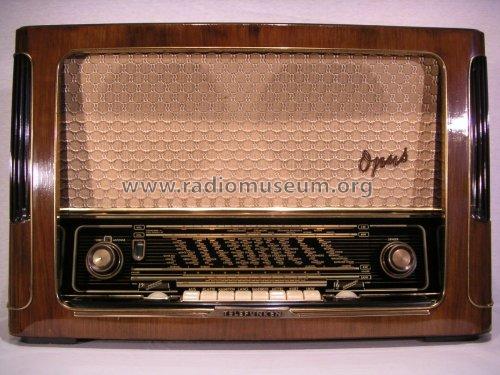

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 640 x 405 x 275 mm / 25.2 x 15.9 x 10.8 inch
Notes

UKW-Skala mit Ätzstreifen zur Markierung der Sender; KW-Lupe.
Chassis baugleich mit AEG 4085WD.

Net weight (2.2 lb = 1 kg) 15.5 kg / 34 lb 2.3 oz (34.141 lb)
Price in first year of sale 498.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56

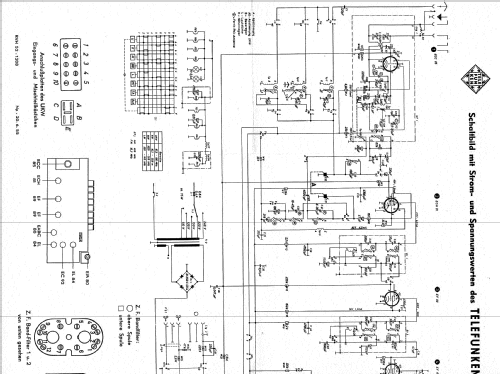

Literature/Schematics (1) -- Original-techn. papers.
