Dublette ID = 22181

Dublette ID = 22181; Telefunken (ID = 98086) Radio

Dublette ID = 22181; Telefunken (ID = 98087) Radio

Dublette ID = 22181; Telefunken (ID = 98089) Radio

Dublette ID = 22181; Telefunken (ID = 98083) Radio

Dublette ID = 22181; Telefunken (ID = 98084) Radio

Dublette ID = 22181; Telefunken (ID = 98085) Radio
Use red slider bar for more.
Dublette ID = 22181; Telefunken (ID = 98086) Radio

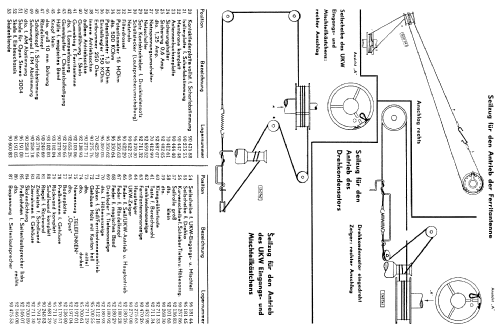

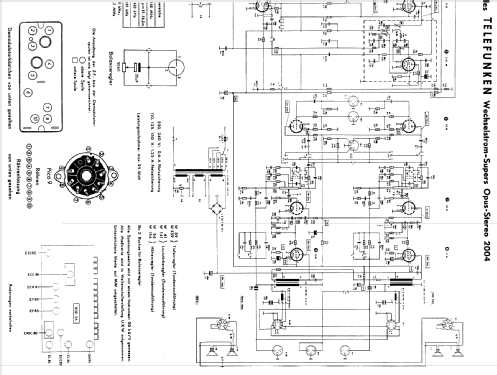

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 9999/9999 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: ECC85 ECH81 EF89 EF89 EM84 EABC80 ECC83 ECC83 EL84 EL84
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Dublette ID = 22181 - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 675 x 385 x 280 mm / 26.6 x 15.2 x 11 inch
Notes Nussbaum, hell mattiert / 1 Diode OA180,
Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Price in first year of sale 518.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1960/61
Literature/Schematics (1) -- Original-techn. papers.
