Phono-Nauen 330WS (T330WS) (330 aWS)

Phono-Nauen 330WS ; Telefunken (ID = 19958) Radio

Phono-Nauen 330WS ; Telefunken (ID = 717790) Radio

Phono-Nauen 330WS ; Telefunken (ID = 717791) Radio

Phono-Nauen 330WS ; Telefunken (ID = 11034) Radio

Phono-Nauen 330WS ; Telefunken (ID = 7576) Radio
Phono-Nauen 330WS ; Telefunken (ID = 1401573) Radio Phono-Nauen 330WS ; Telefunken (ID = 97870) Radio
Phono-Nauen 330WS ; Telefunken (ID = 97872) Radio Phono-Nauen 330WS ; Telefunken (ID = 97873) Radio
Phono-Nauen 330WS ; Telefunken (ID = 65767) Radio Phono-Nauen 330WS ; Telefunken (ID = 97871) Radio
Phono-Nauen 330WS ; Telefunken (ID = 1401578) Radio Phono-Nauen 330WS ; Telefunken (ID = 1401582) Radio
Phono-Nauen 330WS ; Telefunken (ID = 1401586) Radio
Use red slider bar for more.
Phono-Nauen 330WS ; Telefunken (ID = 1401573) Radio
Telefunken: Phono-Nauen 330WS [Radio] ID = 1401573 538x907
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phono-Nauen 330WS (T330WS) (330 aWS), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:

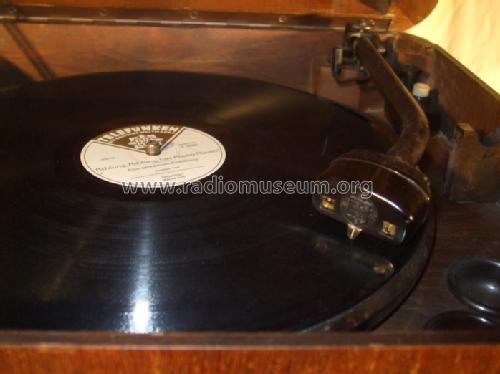

D_Phono-Nauen 330WS_Gesamtansicht geöffnet.jpg

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1264 RENS1264 RENS1374d RGN1064
Main principle Superheterodyne (common); ZF/IF 232/500 kHz; Reaction
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Phono-Nauen 330WS - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 420 x 440 x 380 mm / 16.5 x 17.3 x 15 inch
Notes

Elektrischer Plattenspieler.

Rückkopplungs Audion für Demodulation.
ZF für MW= 232kHz,
ZF für LW= 500kHz.

Radiochassis des Nauen 330WL.

Price in first year of sale 298.00 RM !
Source of data Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + Schenk
Mentioned in Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35
