For model Ariadne 33 080, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1962/1963 Category: Television Receiver (TV) or Monitor
Valves / Tubes 21: PC86 PC88 PCC88 PCF86 EF183 EF80 PCF80 PCL84 EBF89 PCL86 EL95 ECH84 ECC81 PCL85 PCF802 PL500 PY88 DY86 AW59-90
Main principle Super-Heterodyne (Super in general); ZF/IF 38900 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Ariadne 33 080 - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 620 x 530 x 350 mm / 24.4 x 20.9 x 13.8 inch

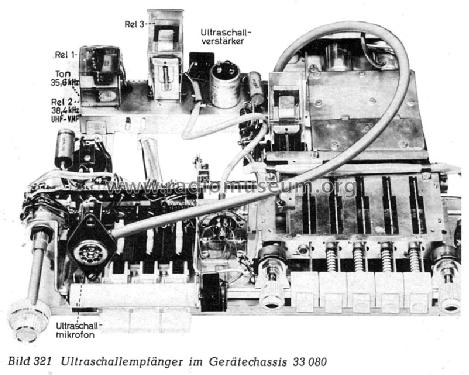

Notes VHF/UHF. Ultraschall-Fernbedienung oder drahtgebundene Fernbedienung VI.
Net weight (2.2 lb = 1 kg) 40 kg / 88 lb 1.7 oz (88.106 lb)
Price in first year of sale 1'398.00 DM
External source of data Erb
Source of data Handbuch VDRG 1962/1963

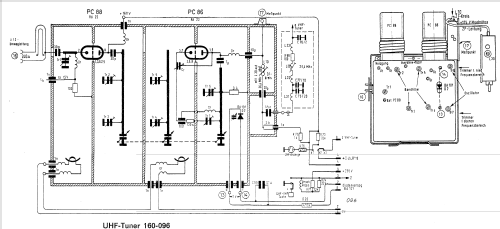

Literature/Schematics (1) -- Schematic
