Tango 5449WK T5449WK

Tango 5449WK T5449WK; Telefunken (ID = 20526) Radio

Tango 5449WK T5449WK; Telefunken (ID = 7871) Radio

Tango 5449WK T5449WK; Telefunken (ID = 1252696) Radio
Tango 5449WK T5449WK; Telefunken (ID = 2026250) Radio Tango 5449WK T5449WK; Telefunken (ID = 2026251) Radio

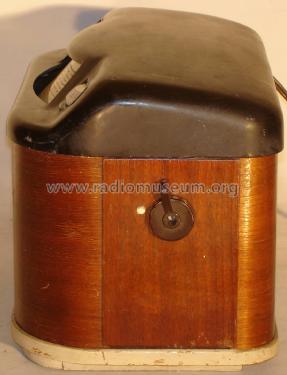

Tango 5449WK T5449WK; Telefunken (ID = 2026254) Radio Tango 5449WK T5449WK; Telefunken (ID = 2026252) Radio
Tango 5449WK T5449WK; Telefunken (ID = 2026255) Radio Tango 5449WK T5449WK; Telefunken (ID = 2026256) Radio
Tango 5449WK T5449WK; Telefunken (ID = 708789) Radio Tango 5449WK T5449WK; Telefunken (ID = 22237) Radio
Tango 5449WK T5449WK; Telefunken (ID = 148690) Radio Tango 5449WK T5449WK; Telefunken (ID = 364304) Radio
Use red slider bar for more.
Tango 5449WK T5449WK; Telefunken (ID = 2026250) Radio
Telefunken: Tango 5449WK T5449WK [Radio] ID = 2026250 1400x1025
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tango 5449WK T5449WK, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH11 EBF11 ECL11 AZ11
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Tango 5449WK T5449WK - Telefunken Deutschland TFK,
Material Various materials
Dimensions (WHD) 300 x 200 x 190 mm / 11.8 x 7.9 x 7.5 inch
Notes [FS4914]auch 5459??
Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Price in first year of sale 278.00 DM
Source of data Katalog Weide, 1949/50. / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch (??)
Mentioned in Funk-Technik (FT) (5004)
Literature/Schematics (4) -- Schematic
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
