Vivace Super 2432

Vivace Super 2432; Telefunken, Helsinki (ID = 1567003) Radio Vivace Super 2432; Telefunken, Helsinki (ID = 1567004) Radio
Vivace Super 2432; Telefunken, Helsinki (ID = 1567005) Radio Vivace Super 2432; Telefunken, Helsinki (ID = 1567006) Radio
Vivace Super 2432; Telefunken, Helsinki (ID = 1567007) Radio Vivace Super 2432; Telefunken, Helsinki (ID = 1567008) Radio
Vivace Super 2432; Telefunken, Helsinki (ID = 1567009) Radio
Use red slider bar for more.
Vivace Super 2432; Telefunken, Helsinki (ID = 1567003) Radio
Telefunken, Helsinki: Vivace Super 2432 [Radio] ID = 1567003 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vivace Super 2432, Telefunken, Helsinki

Country:  Finland
Manufacturer / Brand:  Telefunken, Helsinki
Year: 1954 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6H31 6F31 EAF42 EL41 EM80 AZ11 EC92 EF80 EF85 EABC80
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Vivace Super 2432 - Telefunken, Helsinki
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 550 x 350 x 300 mm / 21.7 x 13.8 x 11.8 inch

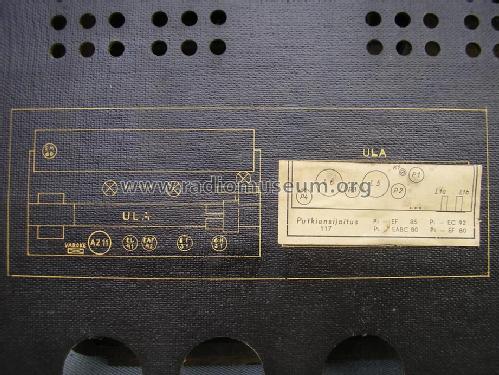

Notes 6 pcs tubes in AM-radio-part, and 4pcs in FM-part (EC92, EF80, EF85, EABC80)

Model page created by Timo Rantasaari. See "Data change" for further contributors.
