• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 272231

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EM84 EBC91 EL84 ECL86

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; Export model

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 115; 230 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

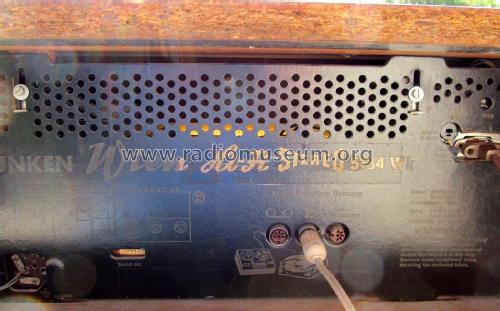

• Model: Wien HiFi Stereo 5184 Wk - Telefunken Deutschland TFK,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1100 x 800 x 420 mm / 43.3 x 31.5 x 16.5 inch

• Notes

• Telefunken Wien HiFi Stereo 5184 Wk is an export model for the U.S.A.
  AM (BC) band with CD-marks at 640 and 1240 kHz..
  Please refer to the forum article Conelrad: Radio meets the Civil Defense

  Record changer: Telefunken 504

  See also the similar domestic model Telefunken Wien 2183.

• Mentioned in
• -- Original-techn. papers.

Telefunken Wein 5184 Wk Manual and Schematic

3525 KB
