Bodan 400 W349 Luxus

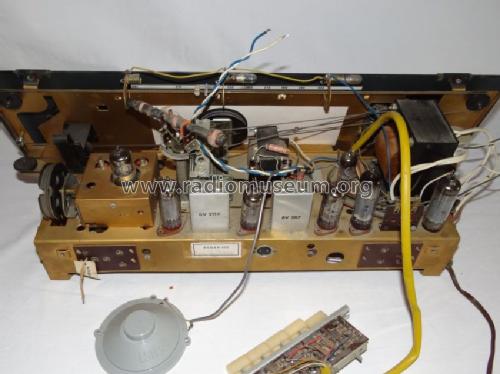

Bodan 400 W349 Luxus; Tonfunk GmbH; (ID = 1414726) Radio Bodan 400 W349 Luxus; Tonfunk GmbH; (ID = 1414727) Radio
Bodan 400 W349 Luxus; Tonfunk GmbH; (ID = 1414728) Radio Bodan 400 W349 Luxus; Tonfunk GmbH; (ID = 1414730) Radio
Bodan 400 W349 Luxus; Tonfunk GmbH; (ID = 1414731) Radio Bodan 400 W349 Luxus; Tonfunk GmbH; (ID = 1414732) Radio
Bodan 400 W349 Luxus; Tonfunk GmbH; (ID = 1414733) Radio Bodan 400 W349 Luxus; Tonfunk GmbH; (ID = 1414734) Radio
Bodan 400 W349 Luxus; Tonfunk GmbH; (ID = 2022200) Radio Bodan 400 W349 Luxus; Tonfunk GmbH; (ID = 2022201) Radio
Use red slider bar for more.
Bodan 400 W349 Luxus; Tonfunk GmbH; (ID = 1414726) Radio
Tonfunk GmbH;: Bodan 400 W349 Luxus [Radio] ID = 1414726 850x636
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bodan 400 W349 Luxus, Tonfunk GmbH; Karlsruhe

Country:  Germany
Manufacturer / Brand:  Tonfunk GmbH; Karlsruhe
Year: 1959 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF89 EABC80 EM80 EC92 EL84 EL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; Export model
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Bodan 400 W349 Luxus - Tonfunk GmbH; Karlsruhe
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 670 x 390 x 245 mm / 26.4 x 15.4 x 9.6 inch
Notes

Gegentaktausgangsstufe mit 2 x EL84. Drehbare Ferritantenne.

4 Lautsprecher: 1 Oval-Lautsprecher, 2 seitliche runde Lautsprecher, 1 elektrostatischer Hochtöner.

Export-Modell für die Schweiz.

Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)

Model page created by Peter Gruschka. See "Data change" for further contributors.
