Piccophon-Super W102PH

Piccophon-Super W102PH; Tonfunk GmbH; (ID = 321100) Radio

Piccophon-Super W102PH; Tonfunk GmbH; (ID = 430100) Radio

Piccophon-Super W102PH; Tonfunk GmbH; (ID = 1527542) Radio

Piccophon-Super W102PH; Tonfunk GmbH; (ID = 1527544) Radio

Piccophon-Super W102PH; Tonfunk GmbH; (ID = 1527545) Radio

Piccophon-Super W102PH; Tonfunk GmbH; (ID = 1527546) Radio
Piccophon-Super W102PH; Tonfunk GmbH; (ID = 2535) Radio Piccophon-Super W102PH; Tonfunk GmbH; (ID = 2089043) Radio
Use red slider bar for more.
Piccophon-Super W102PH; Tonfunk GmbH; (ID = 2535) Radio

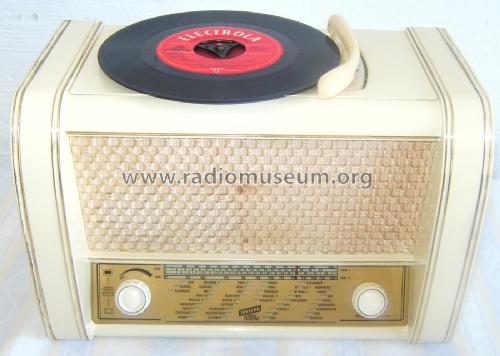

Tonfunk GmbH;: Piccophon-Super W102PH [Radio] ID = 2535 700x476
Select picture or schematic to display from thumbnails on the right and click for download.
For model Piccophon-Super W102PH, Tonfunk GmbH; Karlsruhe

Country:  Germany
Manufacturer / Brand:  Tonfunk GmbH; Karlsruhe
Year: 1953–1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EC92 ECH81 EF85 EABC80 EL41 or EL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Piccophon-Super W102PH - Tonfunk GmbH; Karlsruhe
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 310 x 210 x 165 mm / 12.2 x 8.3 x 6.5 inch
Notes

Tonfunk Piccophon Super W102PH mit Miniatur-Laufwerk für 17 cm / 45 U/min Schallplatten.
Lautsprecher 13 x 8 cm.

Modell 1954 hat EL84 statt EL41

Net weight (2.2 lb = 1 kg) 5.8 kg / 12 lb 12.4 oz (12.775 lb)
Price in first year of sale 248.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 2, Ernst Erb
Mentioned in Historische Radios (1-5) = zur Verknüpfung mit Modellseiten
Literature/Schematics (1) Taxliste Franzis Verlag (Ausgabe 5)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
