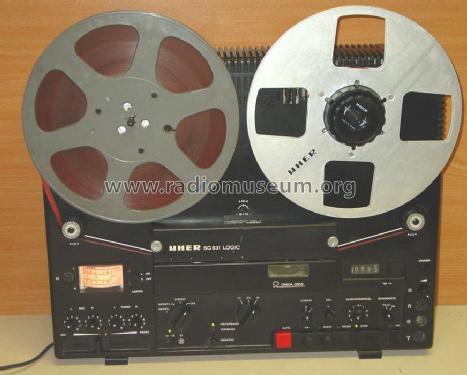

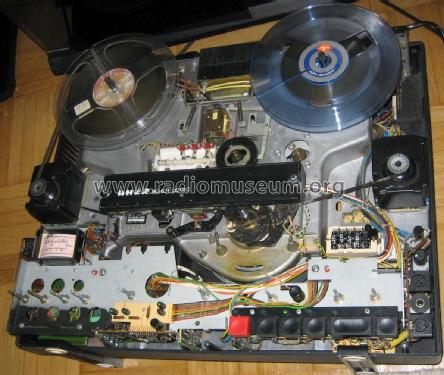

Uher Werke; München: SG631 Logic [R-Player] ID = 2345370 1400x1381
Select picture or schematic to display from thumbnails on the right and click for download.
For model SG631 Logic, Uher Werke; München:
Gerät im 'Das Rundfunkmuseum' in Cham

Country:  Germany
Manufacturer / Brand:  Uher Werke; München
Year: 1980 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 111: S2417 BC141 BC143 BC183 BC212 BC214 BC237 BC238 BC264 BC308 BC327 BC384 BC513 BD135 BD241 BD244 BD245 J174 J175 J176 P7035 S7267 BP103 CD4011 CD4013 CD4049 LM3900 RC4739 TAA761
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: SG631 Logic - Uher Werke; München
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 510 x 400 x 146 mm / 20.1 x 15.7 x 5.7 inch
Notes 111 Trans., 19 IC, 143 Dioden; 3 Bandgeschwindigkeiten: 4,75/9,5/19 cm/sek; für Spulen bis 26,5 cm, Frequenzgang bei 19 cm/sek: 30-22000 Hz; Hinterbandkontrolle; 4 Motoren; Bandtransport durch Omega-Schlaufe - keine Andruckrolle; 4 Köpfe, davon 1 Extra-Kopf für Dia-Show; 2- oder 4-Spur je nach Kopfträger; senkrechter oder waagerechter Betrieb möglich.
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 1'848.00 DM
Source of data -- Schematic / Radiokatalog Band 2, Ernst Erb

Model page created by Iven Müller. See "Data change" for further contributors.
