• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Ultimate-Ekco (N.Z.) Co. Ltd.; Auckland

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 361182

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6BA6 6BE6 EBF80 EL86 EL84 EZ81 EF86 ECC83 EL84 EM34

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz

• Wave bands
• Broadcast only (MW).

• Details
• Changer + Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Ultimate Recordergram RDL - Ultimate-Ekco N.Z. Co. Ltd.;

• Shape
• Console with any shape - in general

• Notes

• Ultimate RDL Recordergram

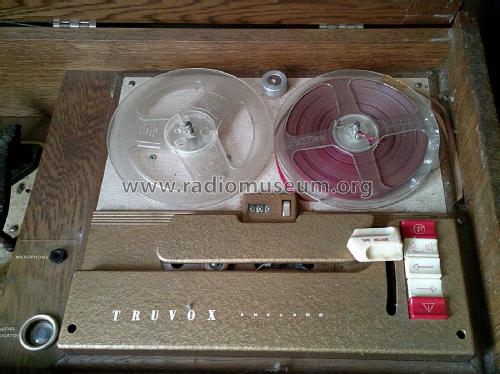

  6-valve Broadcast (MW) superhet with RF stage receiver with Rola 12/0 and 5FX speakers, Garrard RC120H record changer, and Truvox Tape recorder with 4-valve preamp.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
