• Country
• Italy

• Manufacturer / Brand
• Unaohm Start, Ohm, E. Pontremoli; Milano

• Year
• 1958 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 364146

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• ECC82 ECC81 ECC81 EBC90 EF94 EF94 6AS7G 0B2 ECC85 ECH81 ECC82 ECC85 ECH81 ECC82

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 125; 145; 160; 220; 280 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

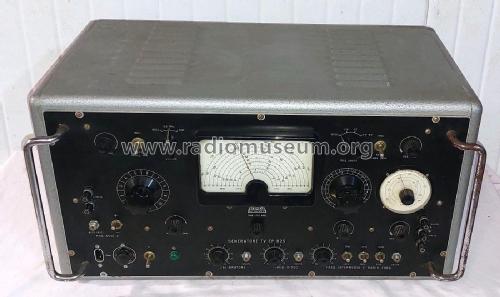

• Model: Generatore TV EP 825 - Unaohm Start, Ohm, E.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 520 x 300 x 300 mm / 20.5 x 11.8 x 11.8 inch

• Notes

• Valvole parte generatore RF: ECC85 ECH81 ECC82; valvole parte vobulatore: ECC85 ECH81ECC82

• Net weight (2.2 lb = 1 kg)
• 24 kg / 52 lb 13.8 oz (52.863 lb)

Manuale Unaohm Generatore TV EP 825

1730 KB

• Documents regarding this model

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
