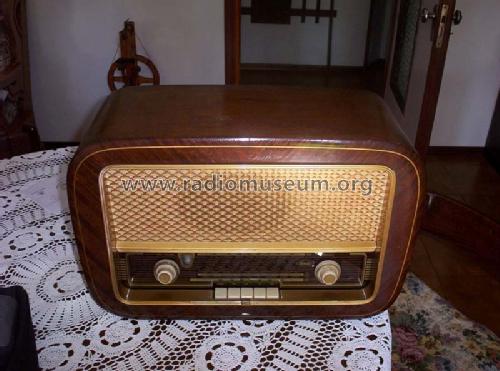

74/4; Unda Radio SA - Como (ID = 478445) Radio
Unda Radio SA - Como: 74/4 [Radio] ID = 478445 800x594
Select picture or schematic to display from thumbnails on the right and click for download.
For model 74/4, Unda Radio SA - Como

Country:  Italy
Manufacturer / Brand:  Unda Radio SA - Como
Year: 1958–1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 120-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: 74/4 - Unda Radio SA - Como
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 540 x 360 x 240 mm / 21.3 x 14.2 x 9.4 inch
Notes Altoparlante ellittico 18 x 13 cm.
Price in first year of sale 42'000.00 ITL
Collectors' prices
Source of data Guida Pratica Antique Radio III (2000)
Mentioned in undaradio.com

Model page created by Claudio Buslacchi. See "Data change" for further contributors.
