R72/1

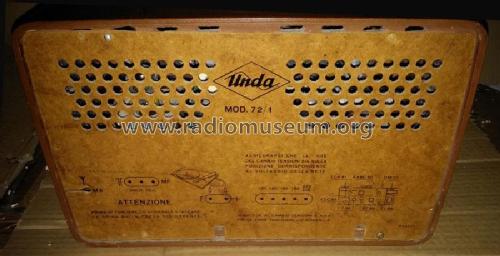

R72/1; Unda Radio SA - Como (ID = 1769450) Radio R72/1; Unda Radio SA - Como (ID = 1520005) Radio

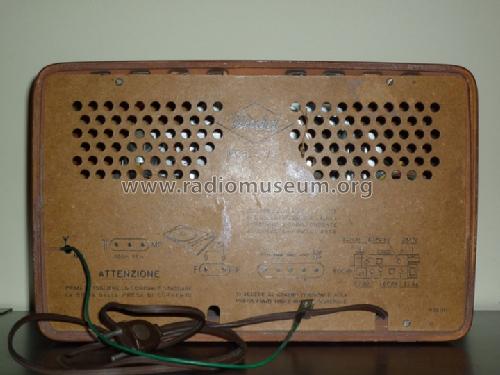

R72/1; Unda Radio SA - Como (ID = 1520008) Radio R72/1; Unda Radio SA - Como (ID = 1520009) Radio
R72/1; Unda Radio SA - Como (ID = 1769451) Radio
Use red slider bar for more.
R72/1; Unda Radio SA - Como (ID = 1769450) Radio
Unda Radio SA - Como: R72/1 [Radio] ID = 1769450 900x591
Select picture or schematic to display from thumbnails on the right and click for download.
For model R72/1, Unda Radio SA - Como:
immagine tratta da inserzione e-bay. testimonia l'esistenza di mobili di colori differenti

Country:  Italy
Manufacturer / Brand:  Unda Radio SA - Como
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 DM70 EL84 EZ80
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: R72/1 - Unda Radio SA - Como
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 340 x 210 x 180 mm / 13.4 x 8.3 x 7.1 inch
Notes Serie ANIE MF.
Source of data Guida Pratica Antique Radio (1) 1999

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Unda Radio SA - Como
Here you find 226 models, 136 with images and 154 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
