R74/1 late

Unda Radio; Como, Dobbiaco

Data

Forum

Pictures

Collections

Country
Italy

Manufacturer / Brand
Unda Radio; Como, Dobbiaco

Year
1956–1958

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
118617

Schematics

R74/1; Unda Radio; Como, (ID = 950841) Radio — Unda Radio; Como, R74/1 (3)

R74/1; Unda Radio; Como, (ID = 2465224) Radio — Unda Radio; Como, R74/1 (3)

R74/1; Unda Radio; Como, (ID = 2465225) Radio — Unda Radio; Como, R74/1 (3)

R74/1; Unda Radio; Como, (ID = 2373739) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 2373759) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 2373738) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 2373740) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 2373760) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 591576) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 591574) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 591572) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 591569) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 591570) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 591571) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 591573) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 591575) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 1941722) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 1941724) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 1941727) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 1941732) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 2373783) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 2373784) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 2373785) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 2373786) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 2481557) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 2911294) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 2911295) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 2911296) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 2911297) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 2911298) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 2911299) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 2911300) Radio — Unda Radio; Como, R74/1 (1)

R74/1; Unda Radio; Como, (ID = 2911301) Radio — Unda Radio; Como, R74/1 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
6

Valves / Tubes
ECC85 ECH81 EF85 EABC80 EM80 EL84

Number of Transistors

Semiconductors
E250C75

Main principle
Superheterodyne (common); ZF/IF 467/10700 kHz

Wave bands
Broadcast, 2 Short Wave plus FM or UHF.

Power type and voltage
Alternating Current supply (AC) / 110-220 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

Power out
4.5 W (unknown quality)

Material
Wooden case

from Radiomuseum.org

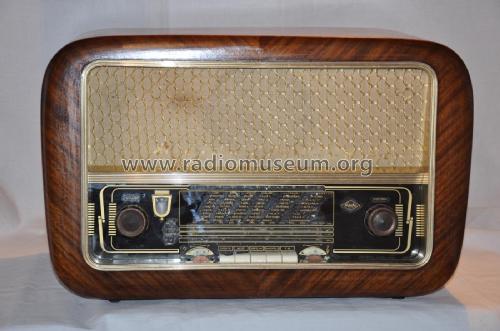

Model: R74/1 [late] - Unda Radio; Como, Dobbiaco

Shape
Tablemodel with Push Buttons.

Dimensions (WHD)
535 x 350 x 240 mm / 21.1 x 13.8 x 9.4 inch

Notes
Serie ANIE MF.

Net weight (2.2 lb = 1 kg)
6.8 kg / 14 lb 15.6 oz (14.978 lb)

Price in first year of sale
42,000.00 ITL

Source of data
Guida Pratica Antique Radio (1) 1999

Mentioned in
Catalogo ANIE (1956-57)

Literature/Schematics (1)
-- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)

Author
Model page created by Alessandro De Poi. See "Data change" for further contributors.
