• Year
  • 1951
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 271250

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 447 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • AC/DC-set
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

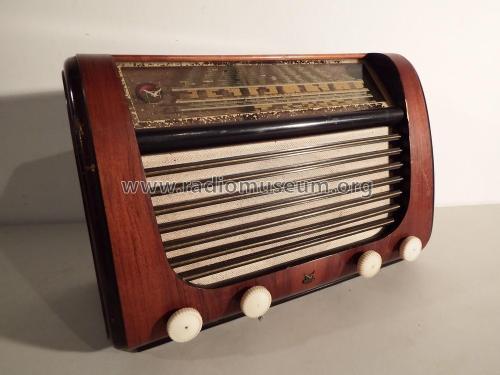

  • Model: Coppelia 6004 - Unica Radio, Rudolph Schmidt;
  • Shape
  • Tablemodel, low profile (big size).
  • Author
  • Model page created by Tomasz Szczesniak. See "Data change" for further contributors.

 Collections | Museums | Literature

 Forum

Forum contributions about this model: Unica Radio, Rudolph: Coppelia 6004

Threads: 1 | Posts: 1

Hello, you can find technical documentation for this model on the link included.

Link:

triple_w dot_peel_dot_DK

(can´t found how to insert link inside post)

Ther are lots of UNICA Radio models, and that one is included.

Good Luck

Vicente Moncholi - Sevilla - Spain

Vicente Moncholi-Cebrian, 04.Feb.22
