Atlas 5 PT-S6

Atlas 5 PT-S6; Vanguard; Hospitalet (ID = 283931) Radio
Atlas 5 PT-S6; Vanguard; Hospitalet (ID = 2437153) Radio Atlas 5 PT-S6; Vanguard; Hospitalet (ID = 2437152) Radio
Atlas 5 PT-S6; Vanguard; Hospitalet (ID = 2437151) Radio Atlas 5 PT-S6; Vanguard; Hospitalet (ID = 2437149) Radio
Atlas 5 PT-S6; Vanguard; Hospitalet (ID = 2437148) Radio Atlas 5 PT-S6; Vanguard; Hospitalet (ID = 2437150) Radio
Atlas 5 PT-S6; Vanguard; Hospitalet (ID = 1277204) Radio Atlas 5 PT-S6; Vanguard; Hospitalet (ID = 1277206) Radio
Atlas 5 PT-S6; Vanguard; Hospitalet (ID = 1277210) Radio Atlas 5 PT-S6; Vanguard; Hospitalet (ID = 1277205) Radio
Use red slider bar for more.
Atlas 5 PT-S6; Vanguard; Hospitalet (ID = 2437153) Radio

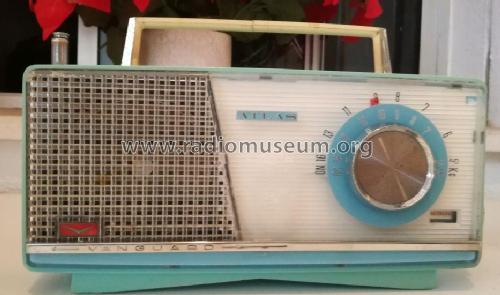

Vanguard; Hospitalet: Atlas 5 PT-S6 [Radio] ID = 2437153 933x551
Select picture or schematic to display from thumbnails on the right and click for download.
For model Atlas 5 PT-S6, Vanguard; Hospitalet de Llobregat

Country:  Spain
Manufacturer / Brand:  Vanguard; Hospitalet de Llobregat
alternative name

Cahué Industrial
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF126 AF126 AF126 AC126 AC126 AC128 AC128 OA70 OA79
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Line / Batteries (any type) / 125 / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
Power out
from Radiomuseum.org Model: Atlas 5 PT-S6 - Vanguard; Hospitalet de
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 290 x 140 x 100 mm / 11.4 x 5.5 x 3.9 inch
Notes



Price in first year of sale 2'892.50 ESP
Literature/Schematics (1) -- Schematic

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.



All listed radios etc. from Vanguard; Hospitalet de Llobregat
Here you find 95 models, 65 with images and 74 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





rmXorg
