- Country
- Italy
- Manufacturer / Brand
- Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)
- Year
- 1957–1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 119070
catalogo anie 1959-60

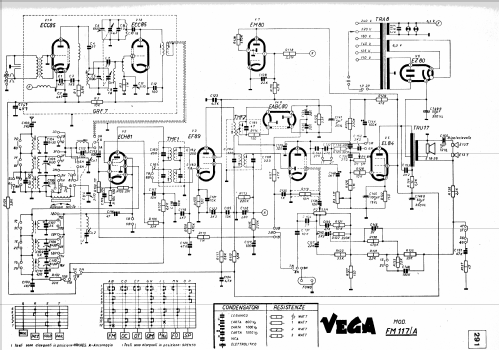

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220; 240 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: FM117 - Vega, BP Radio, Brionvega,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 600 x 360 x 230 mm / 23.6 x 14.2 x 9.1 inch
- Notes
- Un altoparlante magnetodinamico ellittico 18x26cm e 2 magnetodinamici di Ø 13cm.
- Net weight (2.2 lb = 1 kg)
- 10.5 kg / 23 lb 2 oz (23.128 lb)
- Price in first year of sale
- 68,000.00 ITL
- Source of data
- Guida Pratica Antique Radio III (2000)
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
