Televisore WR17-12C

Watt Radio; Torino

  • Year
  • 1960 ??
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 346955

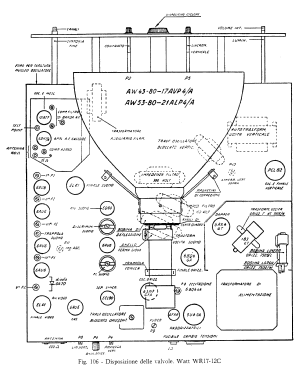

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 20
  • Number of Transistors
  • Semiconductors
  • OA70
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 140; 160; 180; 220; 240 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • from Radiomuseum.org
  • Model: Televisore WR17-12C - Watt Radio; Torino
  • Notes
  • Televisore in bianco/nero con sola VHF.
    Doppio ingresso per l'antenna: Normale o attenuato in caso di segnali fortissimi.

    Cinescopio da 17 pollici con deflessione 90°.

    Lo stesso schema era utilizzato per WR21/12/C con cinescopio da 21 pollici

  • Mentioned in
  • -- Schematic (“Televisori Commerciali” E. Costa U. Hoepli editore, III edizione, 1960.)
