UL84

Information - Help
ID = 1066

Country:
Europe
Brand: Common type Europe tube/semicond.
Tube type:  Vacuum Pentode   Power/Output
Identical to UL84 = N119 = 10P18 = 45B5
Similar Tubes
Heater different:
  EL86 ; HL84 ; PL84
First year 1955 Tube leaflet collection E.Erb Analysis by original leaflets
First Source (s)
Apr.1955 : Funkschau # 7
Predecessor Tubes UL41   UL11   UL12   UL171

Base Noval, 9 pin miniature (USA pico-9) B9A
Filament Vf 45 Volts / If 0.1 Ampere / Indirect / Specified current AC/DC ~ = (Series working)
Tube prices 17 Tube prices (visible for members only)
Information source Röhren-Taschen-Tabelle, (Franzis RTT)

UL84: Schema tube UL84
Stéphane Geslain
    More ...
ul84.png UL84: Telefunken Taschenbuch 1971
Anonymous 15 Collector

More ...

Just Qvigstad
UL84: Iven Müller
Iven Müller

More ...
Usage in Models 1= 1950?? ; 1= 1954 ; 41= 1955?? ; 21= 1955? ; 36= 1955 ; 24= 1956?? ; 34= 1956? ; 80= 1956 ; 28= 1957?? ; 31= 1957? ; 79= 1957 ; 45= 1958?? ; 41= 1958? ; 135= 1958 ; 16= 1959?? ; 36= 1959? ; 89= 1959 ; 67= 1960?? ; 34= 1960? ; 87= 1960 ; 10= 1961?? ; 28= 1961? ; 76= 1961 ; 11= 1962?? ; 29= 1962? ; 51= 1962 ; 11= 1963?? ; 22= 1963? ; 47= 1963 ; 6= 1964?? ; 30= 1964? ; 31= 1964 ; 21= 1965?? ; 23= 1965? ; 10= 1965 ; 9= 1966?? ; 6= 1966? ; 11= 1966 ; 1= 1967?? ; 3= 1967? ; 4= 1967 ; 5= 1968?? ; 6= 1968? ; 2= 1968 ; 1= 1969?? ; 2= 1969? ; 5= 1970?? ; 3= 1970 ; 1= 1971? ; 1= 1971 ; 1= 1973?? ; 1= 1973 ; 1= 1975? ; 1= 9999?? ; 1= 9999? ; 6= 9999

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1403


Collection of



UL84


Forum contributions about this tube
UL84
Threads: 2 | Posts: 3
Hits: 4344     Replies: 0
UL84 (UL84)
Egon Strampe
29.Dec.12
  1

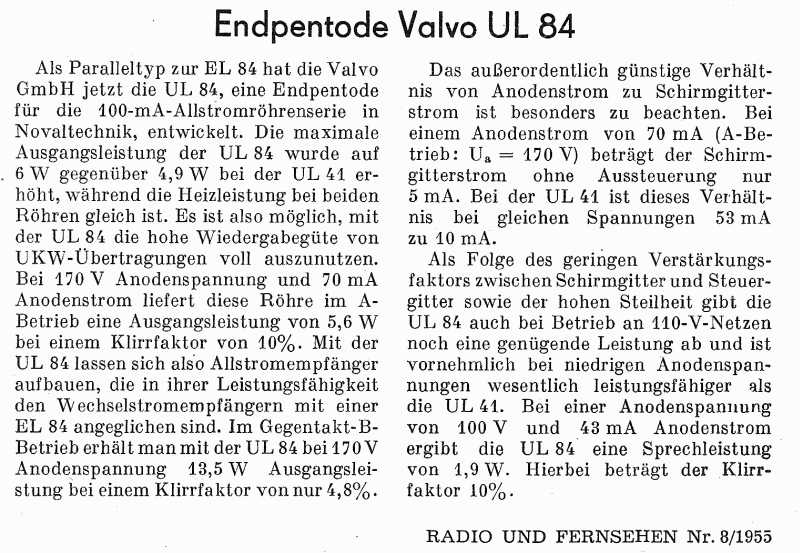

Endpentode UL 84

Attachments


Hits: 4565     Replies: 1
UL84 (UL84)
Paul E. Pinyot † 2013
09.Aug.11
  1

I tested the tube in a Heathkit IT-17 emissions tester with the 6CW5 but with 50 volts filament switch setting.

This tube does not test properly as a 45B5 (from a 1972 Howard W. Sam's & Co., inc.,  Tube Substitution Handbook). The setting for the 45B5 are different than the 6CW5 and result in a false short indication.

Jan Terranea
10.Aug.11
  2

According to the AVO valve data manual all these tubes should be tested with pin 1-6-8 not connected.  The use of these pins is  different by some manufacturers. Shortage may happen if one of these pins is connected to minus HT.


UL84
