29W; AEG Radios Allg. (ID = 2025577) Radio

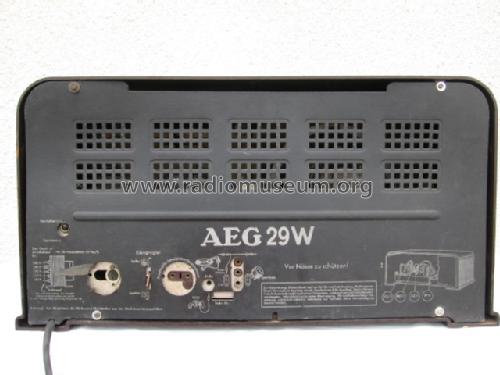

AEG Radios Allg.: 29W [Radio] ID = 2025577 1400x837
Select picture or schematic to display from thumbnails on the right and click for download.
For model 29W, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: EF11 EBF11 ECL11 AZ11
Main principle TRF with diode detector; 2 Special; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 29W - AEG Radios Allg.Elektricitäts-
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 615 x 320 x 265 mm / 24.2 x 12.6 x 10.4 inch
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 168.00 RM
Collectors' prices
Source of data Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
