AEG Radios Allg.: 71WU [Radio] ID = 1449227 800x556
Select picture or schematic to display from thumbnails on the right and click for download.
For model 71WU, AEG (Radios) Allg.Elektricitäts-Ges.:

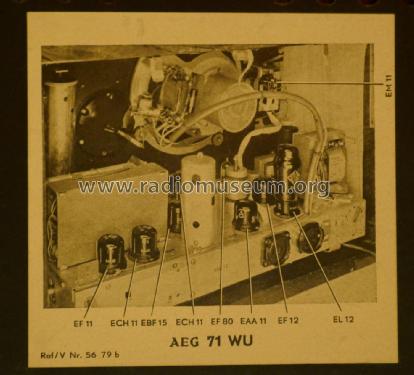

AEG 71 WU Frontansicht

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: EF11 ECH11 ECH11 EBF15 EM11 EF12 EF80 EAA11 EL12
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superhet with RF-stage; ZF/IF 472/10700 kHz
Tuned circuits 8 AM circuit(s)     9 FM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers / Ø 25 cm = 9.8 inch
Power out
from Radiomuseum.org Model: 71WU - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 650 x 430 x 315 mm / 25.6 x 16.9 x 12.4 inch
Notes Wellenbereiche: LW, 2× MW, 3× KW, UKW. Der AEG 71 WU ist ein UKW Super mit Ratiodetektor zur Demodulation des UKW Signals
Net weight (2.2 lb = 1 kg) 22.5 kg / 49 lb 9 oz (49.559 lb)
Price in first year of sale 895.00 DM

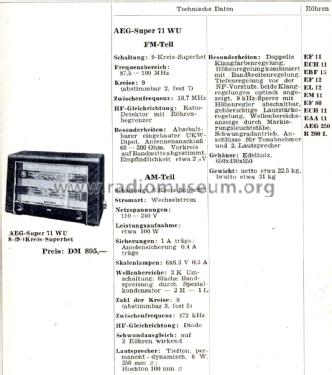

Source of data Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 1, Ernst Erb

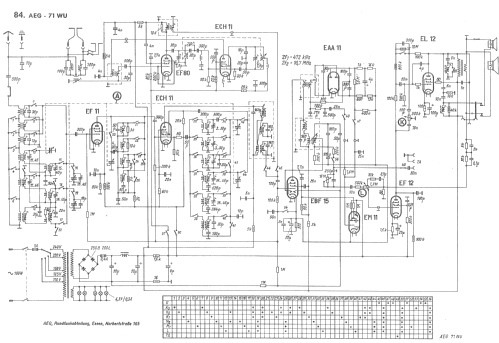

Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 1
Mentioned in Funkgeschichte der GFGF (9501)
