Breitband-Oszillograph 12/9211

Breitband-Oszillograph 12/9211; AEG Radios Allg. (ID = 1385153) Equipment Breitband-Oszillograph 12/9211; AEG Radios Allg. (ID = 1385154) Equipment
Breitband-Oszillograph 12/9211; AEG Radios Allg. (ID = 1385155) Equipment Breitband-Oszillograph 12/9211; AEG Radios Allg. (ID = 1385157) Equipment
Breitband-Oszillograph 12/9211; AEG Radios Allg. (ID = 1385162) Equipment Breitband-Oszillograph 12/9211; AEG Radios Allg. (ID = 1385163) Equipment
Breitband-Oszillograph 12/9211; AEG Radios Allg. (ID = 1385165) Equipment Breitband-Oszillograph 12/9211; AEG Radios Allg. (ID = 1385171) Equipment
Breitband-Oszillograph 12/9211; AEG Radios Allg. (ID = 1385172) Equipment Breitband-Oszillograph 12/9211; AEG Radios Allg. (ID = 1385173) Equipment
Use red slider bar for more.
Breitband-Oszillograph 12/9211; AEG Radios Allg. (ID = 1385153) Equipment

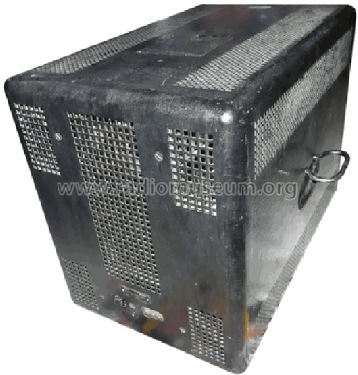

AEG Radios Allg.: Breitband-Oszillograph 12/9211 [Equipment] ID = 1385153 446x564
Select picture or schematic to display from thumbnails on the right and click for download.
For model Breitband-Oszillograph 12/9211, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1957 ?? Category: Service- or Lab Equipment
Valves / Tubes 25: EF80 EF80 EF80 EF80 EF80 EF80 E88CC ECC81 ECC81 ECC81 ECC81 ECC82 ECC82 EL803 EL803 EL803 EL803 EL803 EL803 PL81 PL81 PL81 PL81 unknown_Tube 85A2 85A2 STV100/25ZII
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Breitband-Oszillograph 12/9211 - AEG Radios Allg.Elektricitäts-
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 340 x 420 x 580 mm / 13.4 x 16.5 x 22.8 inch
Notes

Typ der Oszillografenröhre derzeit unbekannt.

Net weight (2.2 lb = 1 kg) 38 kg / 83 lb 11.2 oz (83.7 lb)

Model page created by Detlef Kraus. See "Data change" for further contributors.
