FE543T

FE543T; AEG Radios Allg. (ID = 2477929) Television

FE543T; AEG Radios Allg. (ID = 2477930) Television

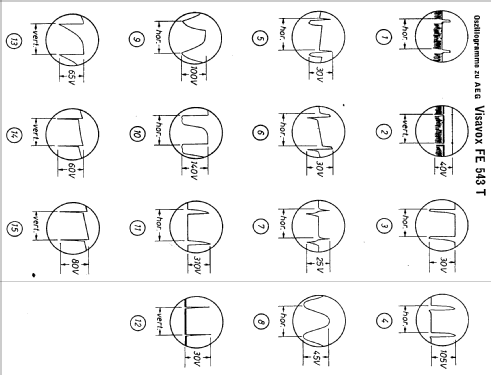

FE543T; AEG Radios Allg. (ID = 2477928) Television
FE543T; AEG Radios Allg. (ID = 313690) Television
Use red slider bar for more.
FE543T; AEG Radios Allg. (ID = 313690) Television
AEG Radios Allg.: FE543T [Television] ID = 313690 425x428
Select picture or schematic to display from thumbnails on the right and click for download.
For model FE543T, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1955/1956 Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: PCC84 PCF82 EF80 EF80 EF80 PL83 ECC82 PCL81 ECH81 PL81 PY83 DY80 EF80 PABC80 EAA91 PL82 or PCL81 MW36-44
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: FE543T - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 480 x 440 mm / 20.5 x 18.9 x 17.3 inch
Notes VHF.
Net weight (2.2 lb = 1 kg) 26 kg / 57 lb 4.3 oz (57.269 lb)
Price in first year of sale 788.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56
