Ultra-Geadem 304W

Ultra-Geadem 304W; AEG Radios Allg. (ID = 5962) Radio

Ultra-Geadem 304W; AEG Radios Allg. (ID = 481173) Radio

Ultra-Geadem 304W; AEG Radios Allg. (ID = 481176) Radio
Ultra-Geadem 304W; AEG Radios Allg. (ID = 39) Radio Ultra-Geadem 304W; AEG Radios Allg. (ID = 236489) Radio
Ultra-Geadem 304W; AEG Radios Allg. (ID = 322257) Radio Ultra-Geadem 304W; AEG Radios Allg. (ID = 322258) Radio
Ultra-Geadem 304W; AEG Radios Allg. (ID = 1502448) Radio Ultra-Geadem 304W; AEG Radios Allg. (ID = 1502450) Radio
Use red slider bar for more.
Ultra-Geadem 304W; AEG Radios Allg. (ID = 39) Radio

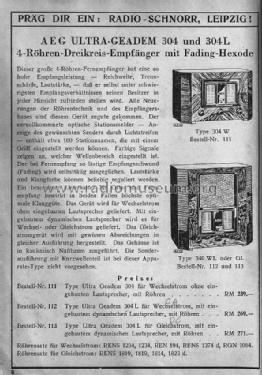

AEG Radios Allg.: Ultra-Geadem 304W [Radio] ID = 39 700x501
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ultra-Geadem 304W, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: RENS1234 RENS1234 REN914 RENS1374d RGN1064
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 Special; 1 AF stage(s); Anode bend detection
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Ultra-Geadem 304W - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 434 x 275 x 274 mm / 17.1 x 10.8 x 10.8 inch
Notes

Paralleltype zum Telefunken Admiral 346W in anderem Gehäuse.
Paralleltype zum Siemens Ätherzepp 47W in anderem Gehäuse.

Price in first year of sale 239.00 RM !
Source of data Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in AEG Hilfsbuch für den Funkhändler
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
