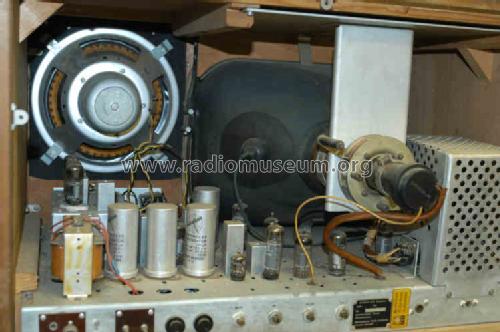

UTO ; Autophon AG inkl. (ID = 199406) Television
Use red slider bar for more.
UTO ; Autophon AG inkl. (ID = 192516) Television
Autophon AG inkl.: UTO [Television] ID = 192516 625x410
Select picture or schematic to display from thumbnails on the right and click for download.
For model UTO, Autophon AG (inkl. Téléphonie SA); Solothurn

Country:  Switzerland
Manufacturer / Brand:  Autophon AG (inkl. Téléphonie SA); Solothurn
Year: 1953/1954 Category: Television Receiver (TV) or Monitor
Valves / Tubes 21: EF80 EF80 EF80 EF80 EF80 EF85 EB91 PL83 ECL80 EF80 6BN6 PL83 ECL80 EQ80 ECL80 EB91 PCL81 PL81 PY81 EY51 14CP4 85A2
schematic requested
Main principle Superhet with RF-stage
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: UTO - Autophon AG inkl. Téléphonie
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 630 x 425 x 415 mm / 24.8 x 16.7 x 16.3 inch
Notes

TV mit 14"-Bildröhre (22 x 29 cm)

Siehe auch FE88 und FE88K

Net weight (2.2 lb = 1 kg) 26 kg / 57 lb 4.3 oz (57.269 lb)
Price in first year of sale 1'383.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
