7W78; Blaupunkt Ideal, (ID = 27405) Radio

7W78; Blaupunkt Ideal, (ID = 27407) Radio

7W78; Blaupunkt Ideal, (ID = 6628) Radio

7W78; Blaupunkt Ideal, (ID = 866201) Radio

7W78; Blaupunkt Ideal, (ID = 1531995) Radio
7W78; Blaupunkt Ideal, (ID = 1653940) Radio 7W78; Blaupunkt Ideal, (ID = 258125) Radio
7W78; Blaupunkt Ideal, (ID = 258127) Radio 7W78; Blaupunkt Ideal, (ID = 258128) Radio
7W78; Blaupunkt Ideal, (ID = 112) Radio 7W78; Blaupunkt Ideal, (ID = 311230) Radio
7W78; Blaupunkt Ideal, (ID = 311231) Radio 7W78; Blaupunkt Ideal, (ID = 311232) Radio
7W78; Blaupunkt Ideal, (ID = 488977) Radio 7W78; Blaupunkt Ideal, (ID = 707612) Radio
Use red slider bar for more.
7W78; Blaupunkt Ideal, (ID = 1653940) Radio

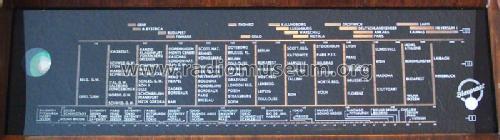

Blaupunkt Ideal,: 7W78 [Radio] ID = 1653940 779x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7W78, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EF11 ECH11 EBF11 EL11 EFM11 AZ11
Main principle Superhet with RF-stage; ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 7W78 - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 384 x 280 mm / 20.9 x 15.1 x 11 inch
Notes variable Bandbreite
Net weight (2.2 lb = 1 kg) 14.7 kg / 32 lb 6.1 oz (32.379 lb)
Price in first year of sale 285.00 RM
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung

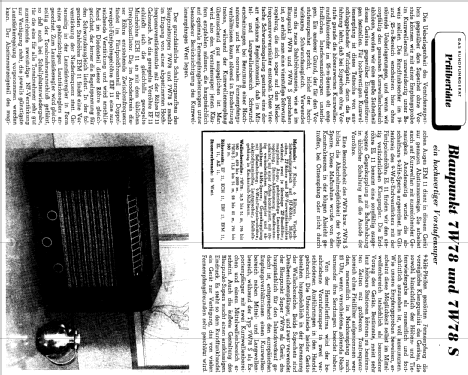

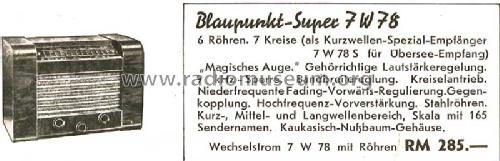

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
