Amazonas

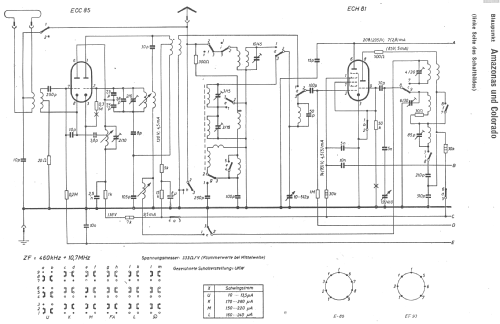

Amazonas ; Blaupunkt Ideal, (ID = 11054) Radio

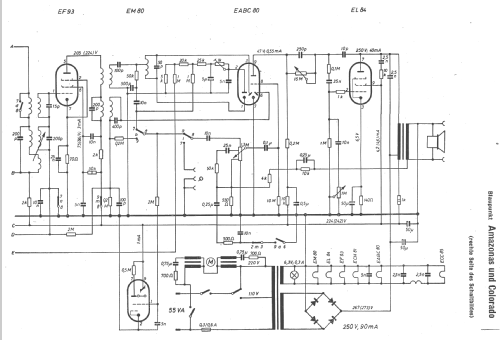

Amazonas ; Blaupunkt Ideal, (ID = 11055) Radio

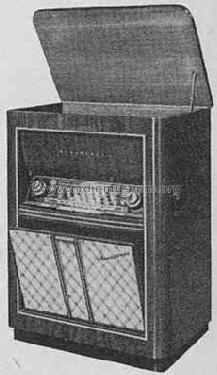

Amazonas ; Blaupunkt Ideal, (ID = 1370659) Radio Amazonas ; Blaupunkt Ideal, (ID = 312414) Radio
Amazonas ; Blaupunkt Ideal, (ID = 1370660) Radio Amazonas ; Blaupunkt Ideal, (ID = 1370661) Radio
Use red slider bar for more.

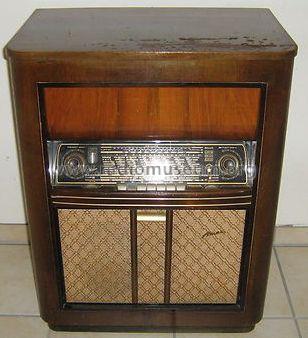

Amazonas ; Blaupunkt Ideal, (ID = 1370659) Radio
Blaupunkt Ideal,: Amazonas [Radio] ID = 1370659 308x338
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amazonas, Blaupunkt (Ideal), Berlin, später Hildesheim:
ebay 251204768960, 2010nightblade

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF93 EABC80 EM80 EL84
Main principle ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Amazonas - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 600 x 760 x 370 mm / 23.6 x 29.9 x 14.6 inch
Notes Rundfunk-Chassis = Nizza;
Phono-Chassis = Rex A.
Net weight (2.2 lb = 1 kg) 24 kg / 52 lb 13.8 oz (52.863 lb)
Price in first year of sale 599.00 DM
External source of data Erb
Source of data Rundfunk- und Fernseh-Katalog 1954/55
