Arizona ; Blaupunkt Ideal, (ID = 490585) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 155; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Arizona [Export] - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 570 x 835 x 420 mm / 22.4 x 32.9 x 16.5 inch
Notes The Blaupunkt Arizona is a modified Arizona 441 with different scale and power elements. Such export models were imported byN. Pickens Import Co., 64-01 Woodside Ave., Woodisde, NY. The same Photofact shows the models for the same schematics: Arizona, Sultan 2320 and Rio. Arizona has a Phono-Chassis = Perpetuum-Ebner Rex A/4.
Net weight (2.2 lb = 1 kg) 26.2 kg / 57 lb 11.3 oz (57.709 lb)

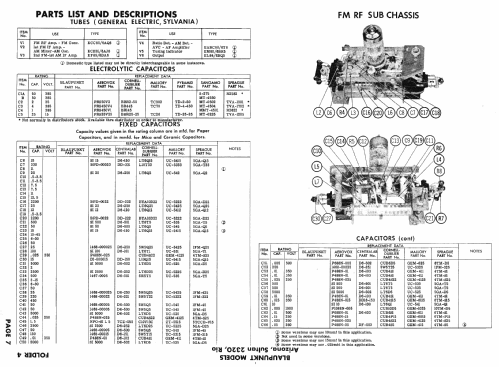

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 12-58, set 424, folder 4)

Model page created by Ernst Erb. See "Data change" for further contributors.
