- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1954/1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 19666
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

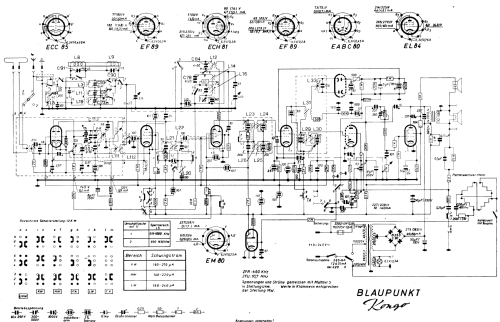

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Superhet with RF-stage; ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-125; 220-240 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

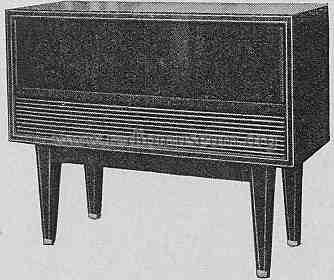

- Model: Kongo - Blaupunkt Ideal, Berlin,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 1004 x 800 x 402 mm / 39.5 x 31.5 x 15.8 inch
- Notes
- Rundfunk-Chassis = Riviera;
Phono-Chassis = Rex A.
Die Angaben im Grosshandelskatalog zur Kreiszahl (9) für die AM-Bereiche ist falsch. Das Chassis hat 6 AM-Kreise + 1 ZF-Saugkreis (Sperrkreis L20 zwischen HF-Vorstufe EF89 und Mischstufe ECH81). Siehe auch Modell Kongo 3D.
- Net weight (2.2 lb = 1 kg)
- 33.5 kg / 73 lb 12.6 oz (73.789 lb)
- Price in first year of sale
- 848.00 DM
- External source of data
- Erb
- Source of data
- Rundfunk- und Fernseh-Katalog 1954/55
