Milano 2225 (Ausführung J)

Milano 2225 ; Blaupunkt Ideal, (ID = 1499993) Radio

Milano 2225 ; Blaupunkt Ideal, (ID = 1499991) Radio

Milano 2225 ; Blaupunkt Ideal, (ID = 207898) Radio

Milano 2225 ; Blaupunkt Ideal, (ID = 207899) Radio

Milano 2225 ; Blaupunkt Ideal, (ID = 2068857) Radio

Milano 2225 ; Blaupunkt Ideal, (ID = 2068859) Radio
Milano 2225 ; Blaupunkt Ideal, (ID = 206887) Radio Milano 2225 ; Blaupunkt Ideal, (ID = 206884) Radio
Milano 2225 ; Blaupunkt Ideal, (ID = 206886) Radio Milano 2225 ; Blaupunkt Ideal, (ID = 206888) Radio
Milano 2225 ; Blaupunkt Ideal, (ID = 238520) Radio Milano 2225 ; Blaupunkt Ideal, (ID = 238521) Radio
Milano 2225 ; Blaupunkt Ideal, (ID = 238522) Radio Milano 2225 ; Blaupunkt Ideal, (ID = 417209) Radio
Milano 2225 ; Blaupunkt Ideal, (ID = 417210) Radio Milano 2225 ; Blaupunkt Ideal, (ID = 417211) Radio
Use red slider bar for more.
Milano 2225 ; Blaupunkt Ideal, (ID = 206887) Radio
Blaupunkt Ideal,: Milano 2225 [Radio] ID = 206887 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Milano 2225 (Ausführung J), Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-125; 220-240 Volt
Loudspeaker 3 Loudspeakers
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Milano 2225 - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 580 x 383 x 275 mm / 22.8 x 15.1 x 10.8 inch
Notes

Drehbare Ferritantenne für LW und MW.

KW-Lupe

Net weight (2.2 lb = 1 kg) 11.8 kg / 25 lb 15.9 oz (25.991 lb)
Price in first year of sale 329.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56

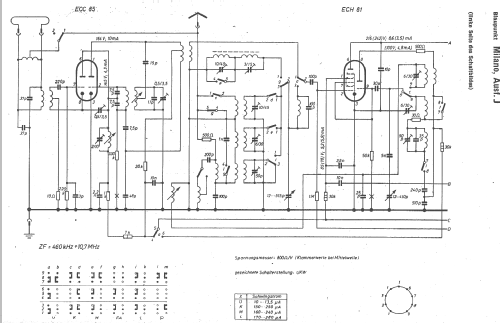

Literature/Schematics (1) Ausführung J lt. Thali Schaltungssammlung
