Musiktruhe 7W77 mit Plattenspieler
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 576
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 468 kHz; Special type of reception - please describe.
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Musiktruhe 7W77 [mit Plattenspieler] - Blaupunkt Ideal, Berlin,
- Shape
- Console with any shape - in general
- Notes
- umschaltbar Super/Geradeaus; variable Bandbreite
- Net weight (2.2 lb = 1 kg)
- 44.5 kg / 98 lb 0.3 oz (98.018 lb)
- Price in first year of sale
- 760.00 RM
- Source of data

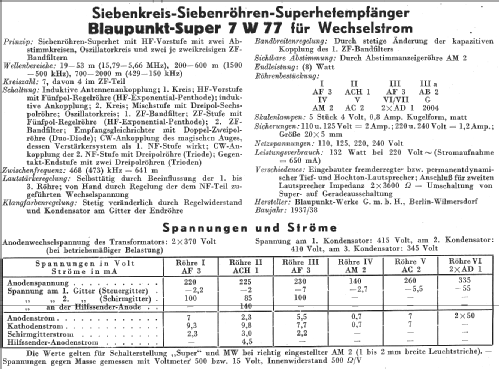

- Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Literature/Schematics (1)
- -- Schematic (OTO-Schaltungen)
