• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1943

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 646

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH21 UCH21 UBL21 UY1N

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: ZGW643 [alt] - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

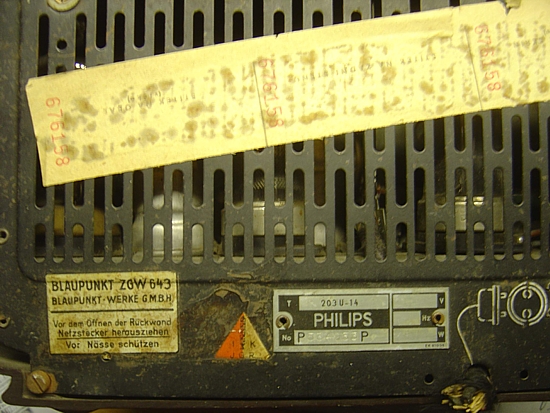

• Ch= Philips 208U. Sogenanntes Verlagerungsgerät (alte Ausführung).

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + Schenk

• Mentioned in
• Funkgeschichte der GFGF (Nr. 234, 235, 236 (2017))
