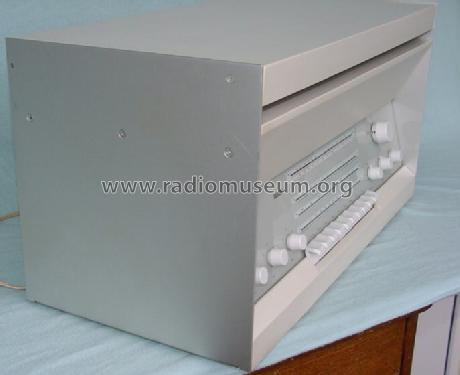

Atelier 3 Stereo Ch= RC 9E

• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1397

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM84 ECC83 ECC83 EC92 EC92 ELL80 ELL80

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details

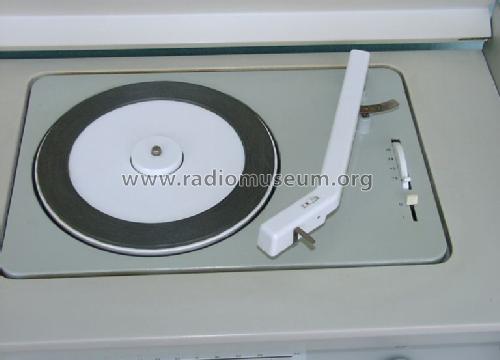

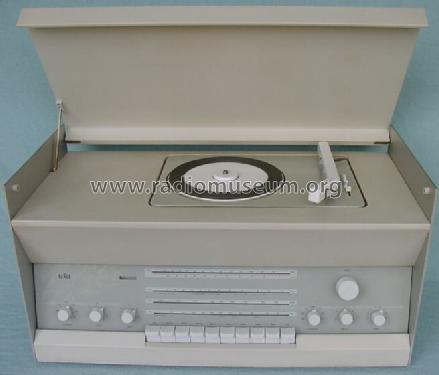

• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 14 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Atelier 3 Stereo Ch= RC 9E - Braun; Frankfurt

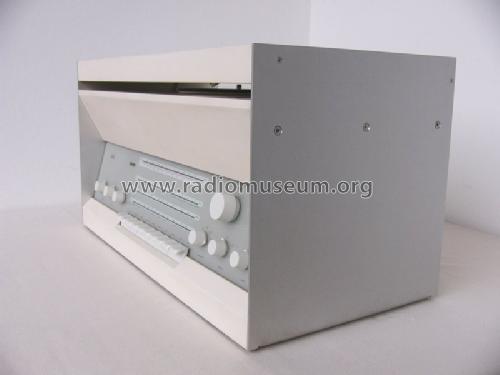

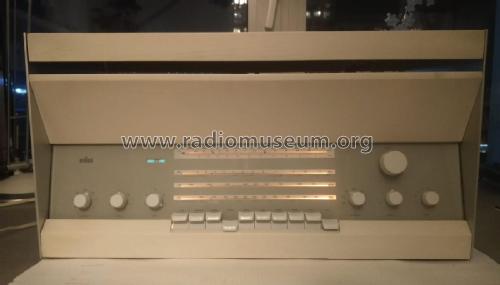

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 566 x 301 x 280 mm / 22.3 x 11.9 x 11 inch

• Notes

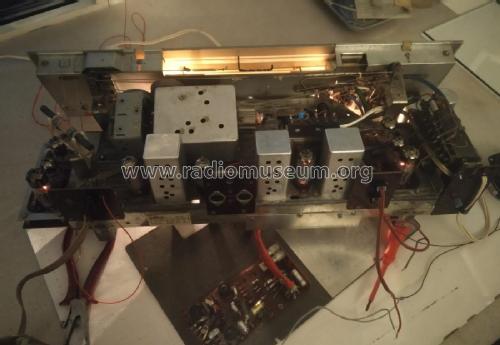

• Nachfolgemodell des Atelier 2 , jedoch mit Chassis RC 9E (wie Braun RCS 9), anderem Gehäuse und Skala nur in Frequenzen geeicht.

  Mit (optionalem?) Stereodekoder TD 9 ausgestattet (montiert auf dem Kartondeckel an der Unterseite).

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Price in first year of sale
• 685.00 DM

• Source of data
• Handbuch RFP 1963 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Handbuch VDRG 1964/1965

• Literature/Schematics (1)
• -- Original-techn. papers.
