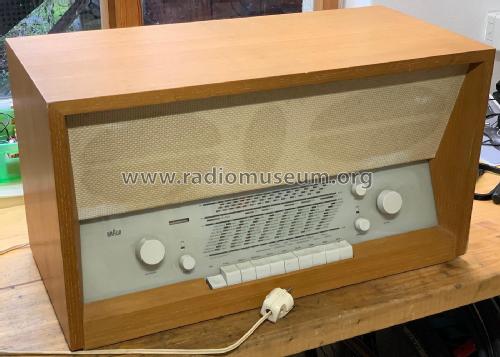

TS 3-8 TS3 Stereo Ch= RC8 C; Braun; Frankfurt (ID = 546404) Radio
Braun; Frankfurt: TS 3-8 TS3 Stereo Ch= RC8 C [Radio] ID = 546404 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model TS 3-8 TS3 Stereo Ch= RC8 C, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1958–1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 EF89 ECH81 EF89 EM84 EABC80 ECC83 EL84 EL84 Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: TS 3-8 TS3 Stereo Ch= RC8 C - Braun; Frankfurt
Material Wooden case

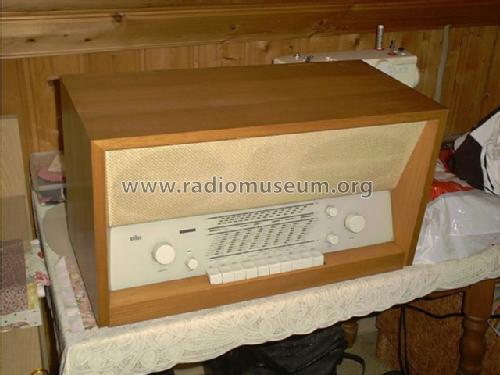

Shape Tablemodel, low profile (big size).
Dimensions (WHD) 600 x 330 x 285 mm / 23.6 x 13 x 11.2 inch
Notes

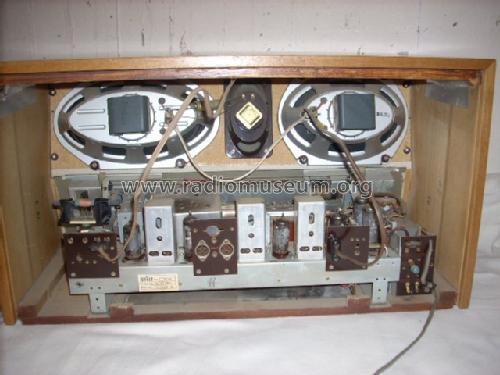

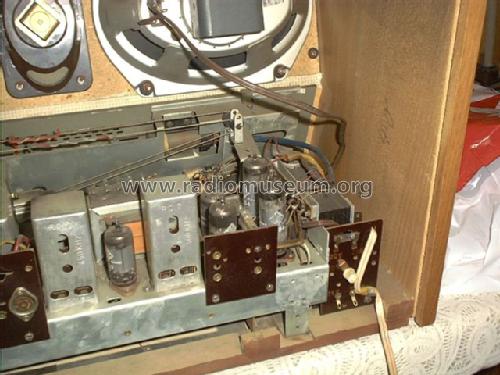

Braun TS3-8 Stereo hat einem Stereo-NF-Verstärker und 2 unterschiedlich grosse Oval-Lautsprecher. Ein zusätzlicher ovaler Hochtöner ist für Kanal 1 vorhanden.

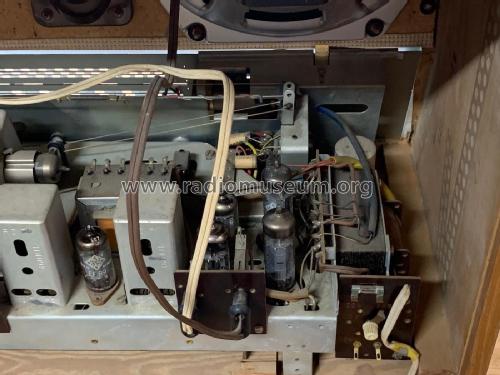

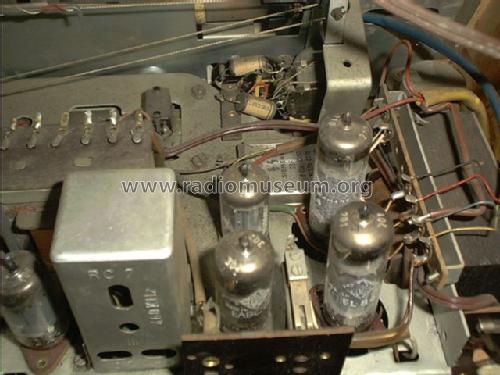

Grundchassis: RC8, erstes NF-Stereo-Chassis von Braun.
Nachfolgemodell: TS3-81 Stereo mit Chassis RC81.

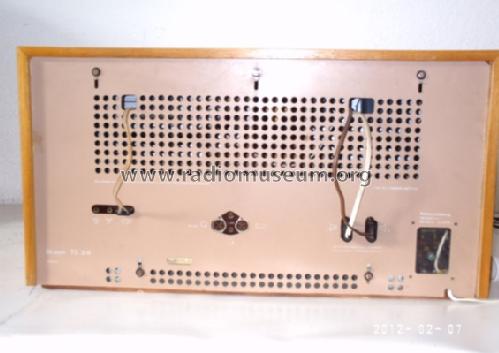

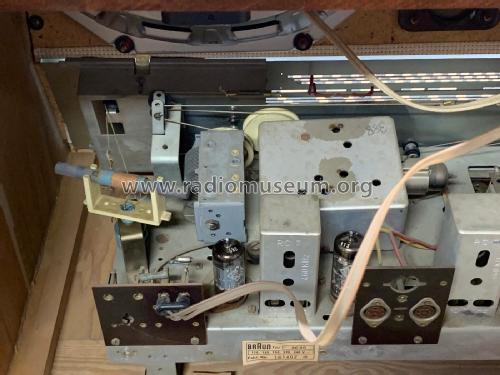

Rückwanddruck zeigt TS 3-8. In einem Braun Prospekt und im VDRG-Katalog 1959/60 als TS3 Stereo bezeichnet, dort werden fälschlicherweise 12 FM-Kreise genannt. Das Schema zeigt dagegen 11 FM-Kreise.

Collectors' prices
Source of data -- Original-techn. papers.
Mentioned in HdB d.Rdf-& Ferns-GrH 1959/60
Literature/Schematics (1) -- Original prospect or advert

Model page created by Norbert Haselbach. See "Data change" for further contributors.
