Кристал Crystal T59-21

Elprom KB (Kliment Voroshilov Works, Slabotokov zavod); Sofia

Data
Forum
Pictures
Collections

  • Year
  • 1963 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 326525

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 19
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Кристал Crystal T59-21 - Elprom KB Kliment Voroshilov
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 610 x 500 x 355 mm / 24 x 19.7 x 14 inch
  • Notes

  • This model under type T59-21 and T59-22 was produced for exhibition purposes only with cornered 59cm screen and CCIR standard. For domestic market it was produced with older, 53cm screen like T53-24 and in small quantity with 59cm screen like T59-20. Model T59-22 was equipped with additional 8W audio amplifier.

  • Net weight (2.2 lb = 1 kg)
  • 31 kg / 68 lb 4.5 oz (68.282 lb)
  • Mentioned in

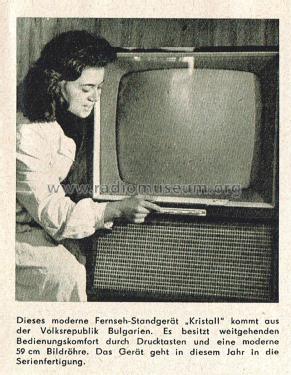

  • Zeitschrift "Jugend und Technik" März 1963 (Heft 3), Seite 27
  • Literature/Schematics (1)
  • Наръчник на телевизионния зрител, Илия Щърбанов, София, "Техника", 1987 год
  • Author
  • Model page created by Michael Mischke. See "Data change" for further contributors.
