• Year
  • 1963/1964
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 14636
    • alternative name: VEB(K) Funkmechanik; Neustad

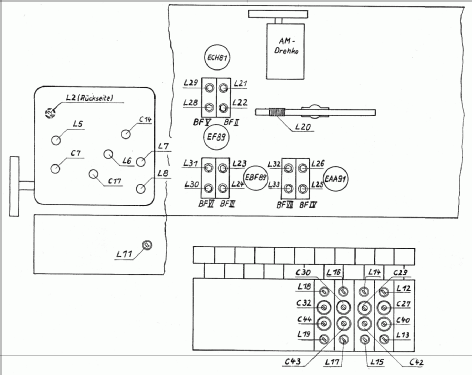

Click on the schematic thumbnail to request the schematic as a free document.

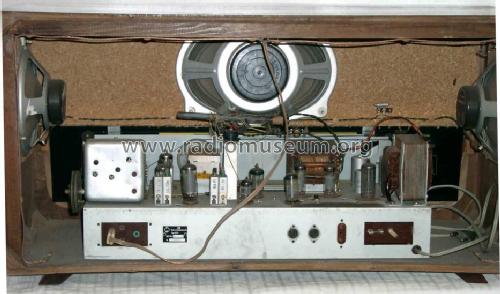

 Technical Specifications

  • Number of Tubes
  • 11
  • Main principle
  • Superheterodyne (common); ZF/IF 473/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     12 FM circuit(s)
  • Wave bands
  • Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125: 220 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 6 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Melodie 63/11 - Funk- und Feinmechanik
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 760 x 390 x 290 mm / 29.9 x 15.4 x 11.4 inch
  • Notes
  • variable Bandbreite; Gegentaktendstufe; drehbare Ferritantenne. Das Modell ist in der Literatur auch nur als «Melodie» bezeichnet. Es scheint aber das gleiche Modell zu sein.
  • Net weight (2.2 lb = 1 kg)
  • 18 kg / 39 lb 10.4 oz (39.648 lb)
  • Price in first year of sale
  • 680.00 DM
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb

 Collections | Museums | Literature

Collections

The model Melodie is part of the collections of the following members.

Museums

The model Melodie can be seen in the following museums.

 Forum

Forum contributions about this model: Funk- und: Melodie 63/11

Threads: 1 | Posts: 1

Jeder Impuls (z.B. beim Einschalten einer Beleuchtungsquelle) läßt die Lautstärke sekundenlang zurückgehen.

Ursache: Gitterableitwiderstand R 14.

rfe 6/69 S.177

Egon Strampe, 17.Mar.11
