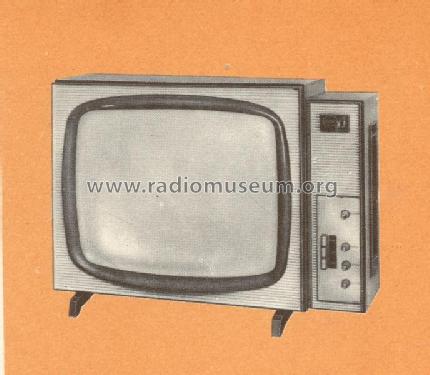

Cornet II UT-139A
GBC; Milano
- Country
- Italy
- Manufacturer / Brand
- GBC; Milano
- Year
- 1963
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 160983
-
- alternative name: Gian Bruto Castelfranchi
Selezione Radio-TV Marzo 1963
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- EC88 EC97 EC86 6CG8A EF183 EF80 EF80 ECL84 ECH81 EF80 EABC80 EL84 EAA91 ECF82 ECL82 EL36 EY81 DY87 23ARP4
- Number of Transistors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Special material, described in the notes.
- from Radiomuseum.org
- Model: Cornet II UT-139A - GBC; Milano
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 590 x 440 x 300 mm / 23.2 x 17.3 x 11.8 inch
- Notes
-
Televisore da 19", cinescopio con deflessione di 110°
Schermo bonded shield che offre una panoramica visione anche in posizioni laterali
Gruppo UHF incorporato
34 funzioni
Mobile di lusso
- Price in first year of sale
- 210,000.00 ITL
- Literature/Schematics (1)
- Selezione Radio-TV Marzo 1963
- Literature/Schematics (2)
- -- Schematic (Schemario GBC su: “Sperimentare” edizioni J.C.E. numero speciale 10, ottobre 1969.)
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
