PT-15

PT-15; GBC; Milano (ID = 1064461) R-Player
PT-15; GBC; Milano (ID = 863484) R-Player PT-15; GBC; Milano (ID = 863485) R-Player
PT-15; GBC; Milano (ID = 662140) R-Player
Use red slider bar for more.
PT-15; GBC; Milano (ID = 863484) R-Player
GBC; Milano: PT-15 [R-Player] ID = 863484 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model PT-15, GBC; Milano:
I_GBC_PT/15_frontale:jpg

Country:  Italy
Manufacturer / Brand:  GBC; Milano
alternative name

Gian Bruto Castelfranchi
Year: 1959 Category: Sound/Video Recorder and/or Player
Valves / Tubes 3: ECC83 6AQ5 EM80
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2.5 W (undistorted)
from Radiomuseum.org Model: PT-15 - GBC; Milano
Material Special material, described in the notes.
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 310 x 150 x 205 mm / 12.2 x 5.9 x 8.1 inch
Notes Raddrizzatore al selenio tipo B250/C75.
Registratore a nastro con bobine da 3½"
Selettore per riproduzione e registrazione a tastiera
2 Velocità: 4,75-9,5 cm/s
Contagiri ad orologio,controllo di tono e volume
Indicatore ottico di registrazione
Mobile in legno ricoperto in vinilpelle.
Price in first year of sale 45'000.00 ITL
Mentioned in Selezione Radio-tv Giugno 1959

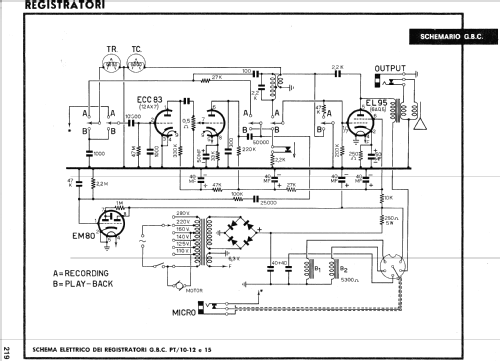

Literature/Schematics (1) Selezione Radio-TV Marzo 1963

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
