Plastik 53GW
Use red slider bar for more.

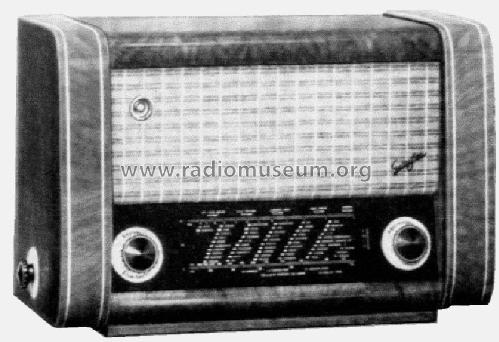

Gerufon-Radio Walter: Plastik 53GW [Radio] ID = 846528 838x574
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1952/1953 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: ECH11 EBF11 EF11 CL4 EM11 CY1 or | ||||
|---|---|---|---|---|---|
| Semiconductors (the count is only for transistors) | Tr.Gl.=Metal-rectif. |
| Main principle | Superheterodyne (common); ZF/IF 470 kHz |
|---|---|
| Tuned circuits | 9 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | AC/DC-set / 220 Volt |
| Loudspeaker | 2 Loudspeakers |
| Power out | |
| from Radiomuseum.org | Model: Plastik 53GW - Gerufon-Radio Walter Velten KG |
| Notes | variable Bandbreite. |
| External source of data | E. Erb 3-907007-36-0 |
| Source of data | Radiokatalog Band 2, Ernst Erb |

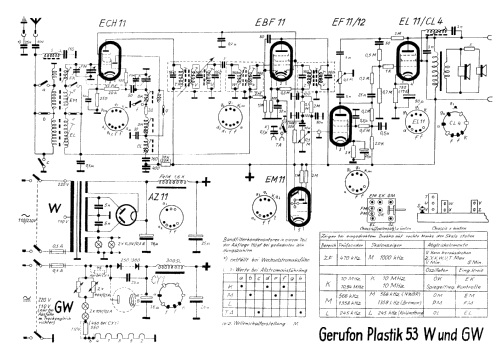

| Circuit diagram reference | Lange Schaltungen der Funkindustrie, Buch 3 |
