913 mit Bildröhre MW43-69
Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Country
- Germany
- Manufacturer / Brand
- Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Year
- 1956/1957
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 229331
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- UCC85 UCH81 UF85 UABC80 UM80 UL84 PCC84 or E88CC PCC85 EF80 EF80 EF80 PL83 EF80 PCF80 PCL82 ECH81 PL81 PY81 EY86 MW43-69
- Number of Transistors
- Main principle
- Superheterodyne (common); ZF/IF 38900/5500/11000 kHz
- Tuned circuits
- 6 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Wave Bands given in the notes.
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

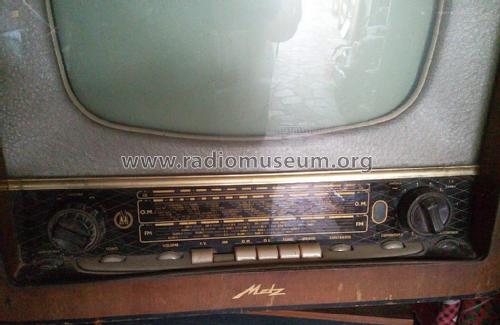

- Model: 913 [mit Bildröhre MW43-69] - Metz Transformatoren- und
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 550 x 500 x 490 mm / 21.7 x 19.7 x 19.3 inch
- Notes
Metz 913 ist eine 43 cm Radio- und Fernsehkombination; Empfangsbereiche VHF Band I und III sowie LW, MW und UKW. Anschluss für TA und Zusatzlautsprecher. AM-ZF 473 kHz.
Gesamttiefe incl. Bildschirmkappe 56 cm. Fernbedienung DM 26,-
Siehe auch Nachfolger Metz 913 mit 90° Bildröhre und geänderter Röhrenbestückung.
- Net weight (2.2 lb = 1 kg)
- 32 kg / 70 lb 7.8 oz (70.485 lb)
- Price in first year of sale
- 978.00 DM
- Mentioned in
- HdB d.Rdf-& Ferns-GrH 1956/57 (S.159)
- Literature/Schematics (1)
- Handbuch RFP 1956/57 S.133
- Literature/Schematics (2)
- -- Original-techn. papers.
- Author
- Model page created by Mark Hippenstiel. See "Data change" for further contributors.
