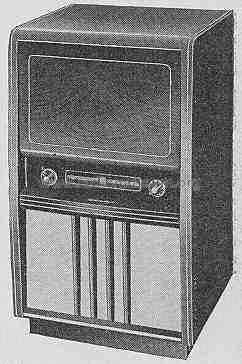

Grundig Radio-: 560 [Television] ID = 313251 242x364
Select picture or schematic to display from thumbnails on the right and click for download.
For model 560, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1954/1955 Category: Television Receiver (TV) or Monitor
Valves / Tubes 21: PCC84 PCF82 EF94 EF94 EF80 EF80 EAA91 PL83 EAA91 EF80 EF80 EABC80 EL84 ECC82 ECC81 PL82 ECL80 PL81 PY83 PY83 DY80 MW43-69
Main principle Superheterodyne (common); ZF/IF 27000 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 560 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 540 x 910 x 510 mm / 21.3 x 35.8 x 20.1 inch
Notes 10 VHF-Kanäle + 2 Reserve.
Net weight (2.2 lb = 1 kg) 45 kg / 99 lb 1.9 oz (99.119 lb)
Price in first year of sale 1'165.00 DM
External source of data Erb
Source of data Rundfunk- und Fernseh-Katalog 1954/55
