Majestic 1041 W/USA

Grundig (Radio-Vertrieb, RVF, Radiowerke)

Data
Forum
Pictures
Collections

  • Year
  • 1954/1955
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 214947
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 160; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

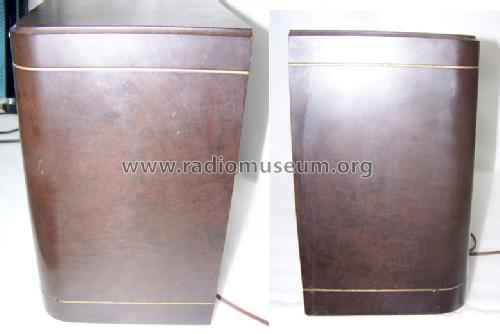

  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Majestic 1041 W/USA - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 503 x 328 x 208 mm / 19.8 x 12.9 x 8.2 inch
  • Notes
  • Grundig Majestic 1041 W/USA;
    FM 88...108 MHz
    See also the domestic model 1041 W.
  • Net weight (2.2 lb = 1 kg)
  • 6.4 kg / 14 lb 1.6 oz (14.097 lb)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.

 Collections | Museums | Literature

 Forum

Forum contributions about this model: Grundig Radio-: Majestic 1041 W/USA

Threads: 2 | Posts: 12

Hi:

Being a newbie I made a mistake today. I should be studying theory before diving in.

I was excited to work on my Grundig Majestic 1041 W. This radio worked Ok on FM but not on other bands.

I tested the tubes, only one was questionable . EL 41

I found a few bad capacitors ( tested bad on a capacitor checker).

After installing the new caps, mostly underneath, I turned on the radio. I saw smoke coming from  underneath. Plugged it out.

It was a 1,5K Ohm resistor ( black in color,  brand "Rosen" ) I also noticed that I may have moved the resistor since it was touching an adjacent  solder.

Removed the resistor and installed a similar one.

Still smoke and the resistor heats up.

What have I done?

Sincerely

M Khan

Mujahid Khan, 02.Apr.12

Weitere Posts (4) zu diesem Thema.

Hi:

I am new to the forum. I was very impressed that I received a confirmation letter from Switzerland in a few days. I live in Princeton, NJ USA.

I need scematics for Grundig Majextic 1041. I just bought a set from Ebay. The Fm works OK but the rest is very weak.

Thanks

M Khan

Mujahid Khan, 24.Mar.12

Weitere Posts (8) zu diesem Thema.
