Landi ; Hasler AG; Bern (ID = 1925372) Television
Hasler AG; Bern: Landi [Television] ID = 1925372 1286x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model Landi, Hasler AG; Bern:
Gerät steht im Museum für Kommunikation Bern.
Country:  Switzerland
Manufacturer / Brand:  Hasler AG; Bern
Year: 1939 Category: Television Receiver (TV) or Monitor
Wave bands VHF incl. FM and/or UHF (see notes for details)
Power type and voltage Line (AC, UC or DC not known)
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Model: Landi - Hasler AG; Bern
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 615 x 1250 x 438 mm / 24.2 x 49.2 x 17.2 inch
Notes Hasler "Landi";

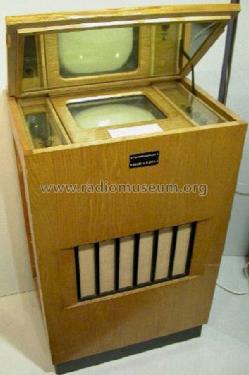

s/w Fernsehempfänger, Bildröhre stehend mit Umlenkspiegel, hergestellt als Machbarkeitsstudie, keine Fertigung aufgrund fehlender Normen und Marktunsicherheit.
Mentioned in Ausgestellt im Museum für Kommunikation, Bern, Schweiz 9808.553-115-1

Model page created by a member from A. See "Data change" for further contributors.

All listed radios etc. from Hasler AG; Bern
Here you find 21 models, 20 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.


Forum contributions about this model
Hasler AG; Bern: Landi
Threads: 1 | Posts: 1
Hits: 723     Replies: 0
hasler: Further Information Regarding the Hasler Landi
Peter Scott

Physics Professor Doctor Franz Tank of the Eidgenössische Technische Hochschule (ETH) constructed a television demonstration for the 1939 Swiss National Exhibition known as the "Landi". This included a complete television studio for the transmision of films and a number of prototype television receivers. Among these receivers was the Hasler Landi which used the same circuitry as the Marconiphone 702 and HMV 901 manufactured by the EMI company in the UK.

It is not known why Hasler did not simply offer one of the EMI products directly for the Landi exhibition. It is known that EMI had difficulty fulfilling the demand for television receivers at that time and this might explain why the Hasler Landi appears to have been constructed using EMI valves, cathode ray tube and chassis but with circuitry built using locally sourced components and a locally constructed cabinet.

The following article by Prof. Franz Tank describes the television studio displayed at the Landi exhibition and is reproduced by kind permission of Museum für Kommunikation, Bern.

Grateful thanks to Thomas Günzel for converting the original document to machine readable format.
