Horny Hornyphon;: WT1734A /00 Ch= C3 [Television] ID = 206086 700x693
Select picture or schematic to display from thumbnails on the right and click for download.
For model WT1734A /00 Ch= C3, Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1957/1958 Category: Television Receiver (TV) or Monitor
Valves / Tubes 20: PCC88 PCF80 EF80 EF80 EF80 EF80 PL83 PCF80 PCF80 PCF80 PCL82 ECH81 PCL82 PCF80 PL36 PY81 DY87 UY82 UY82 AW43-80
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: WT1734A /00 Ch= C3 - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 530 x 510 x 470 mm / 20.9 x 20.1 x 18.5 inch
Notes

Empfangsbereich: Band I, Kanal 2a - 4 + Band III, Kanal 5 - 12.

2 Ausführungen:

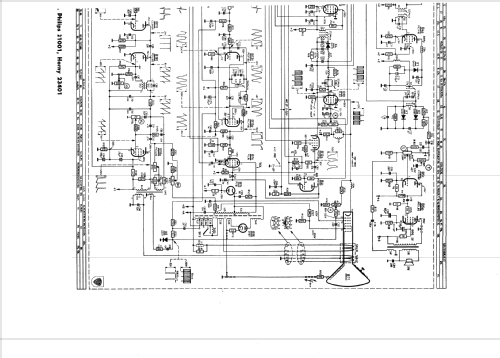

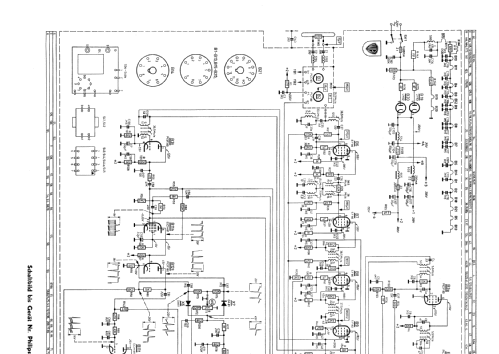

bis Geräte Nr.: 23400 und ab Geräte Nr.: 23401, siehe Schaltpläne.

WT1734A/00 hat keine Drucktasten.
Nicht verwechseln mit WT1734A/01, mit Drucktasten.

Parallelgerät zum Philips 17TA144A/00

Net weight (2.2 lb = 1 kg) 27.5 kg / 60 lb 9.2 oz (60.573 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
