17TA144A /00 Ch= C3; Philips - Österreich (ID = 671880) Television
Philips - Österreich: 17TA144A /00 Ch= C3 [Television] ID = 671880 933x827
Select picture or schematic to display from thumbnails on the right and click for download.
For model 17TA144A /00 Ch= C3, Philips - Österreich:
UHF-Tuner nicht original.

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1957/1958 Category: Television Receiver (TV) or Monitor
Valves / Tubes 20: PCC88 PCF80 EF80 EF80 EF80 EF80 PL83 PCF80 PCF80 PCF80 PCL82 ECH81 PCL82 PCF80 PL36 PY81 DY87 UY82 UY82 AW43-80
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 17TA144A /00 Ch= C3 - Philips - Österreich
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 530 x 510 x 470 mm / 20.9 x 20.1 x 18.5 inch
Notes

Empfangsbereich: Band I, Kanal 2a - 4 + Band III, Kanal 5 - 12

2 Ausführungen:

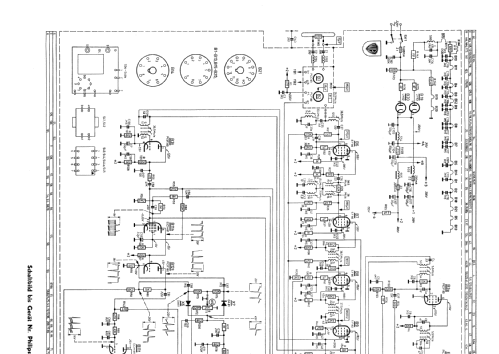

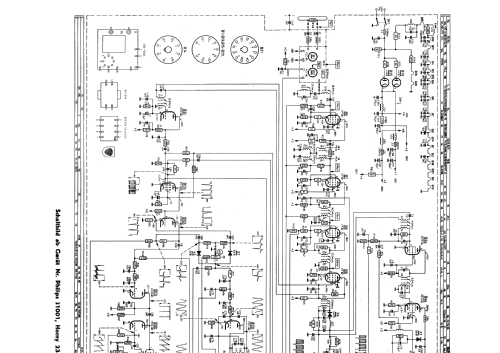

bis Geräte Nr.: 21000 und ab Geräte Nr.: 21001, siehe Schaltpläne.

Nicht verwechseln mit 17TA144A/01, mit Drucktasten.
17TA144A/00 hat keine Drucktasten.

Parallelgerät zum Horny WT1734A/00.


Net weight (2.2 lb = 1 kg) 27.5 kg / 60 lb 9.2 oz (60.573 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
