SFS58/43 PCL82 Tonendstufe

SFS58/43; Kapsch & Söhne KS, (ID = 145695) Television

SFS58/43; Kapsch & Söhne KS, (ID = 145696) Television
SFS58/43; Kapsch & Söhne KS, (ID = 488072) Television SFS58/43; Kapsch & Söhne KS, (ID = 488073) Television
SFS58/43; Kapsch & Söhne KS, (ID = 488075) Television SFS58/43; Kapsch & Söhne KS, (ID = 488074) Television
SFS58/43; Kapsch & Söhne KS, (ID = 488076) Television
Use red slider bar for more.
SFS58/43; Kapsch & Söhne KS, (ID = 488072) Television
Kapsch & Söhne KS,: SFS58/43 [Television] ID = 488072 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model SFS58/43 PCL82 Tonendstufe, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:

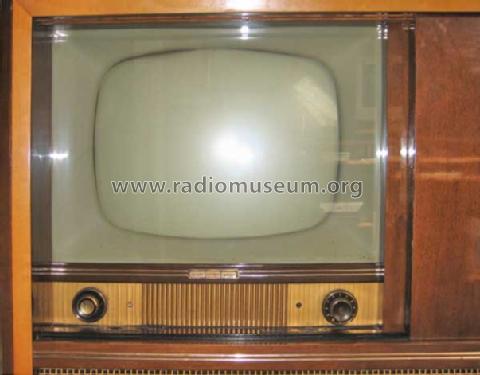

Bild von Erich Capek.

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: PCC88 PCF80 EF80 PL83 EBF89 PCL82 PL36 PY81 DY87 or DY86 AW43-80
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: SFS58/43 [PCL82 Tonendstufe] - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Röhren teilweise mehrfach. Empfangsbereich VHF, Band I + III
Radiochassis Univers Wechselstrom
Source of data Radiokatalog Band 2, Ernst Erb

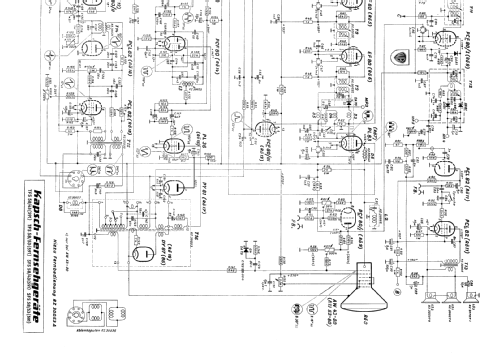

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
