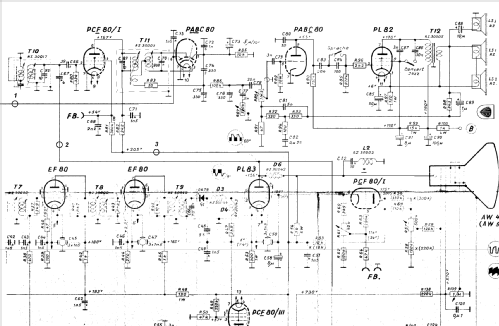

TFS58/53 PL82 Tonendstufe

TFS58/53; Kapsch & Söhne KS, (ID = 145685) Television

TFS58/53; Kapsch & Söhne KS, (ID = 145686) Television

TFS58/53; Kapsch & Söhne KS, (ID = 145687) Television
TFS58/53; Kapsch & Söhne KS, (ID = 169648) Television
Use red slider bar for more.
TFS58/53; Kapsch & Söhne KS, (ID = 169648) Television
Kapsch & Söhne KS,: TFS58/53 [Television] ID = 169648 544x496
Select picture or schematic to display from thumbnails on the right and click for download.
For model TFS58/53 PL82 Tonendstufe, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1958 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: PCC88 PCF80 EF80 PL83 PABC80 PL82 PCL82 PL36 PY81 DY87 or DY86 AW53-80
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: TFS58/53 [PL82 Tonendstufe] - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Röhren teilweise mehrfach. Empfangsbereich VHF, Band I + III
Price in first year of sale 8'250.00 ATS
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
