Weltblick II (2) 113/12

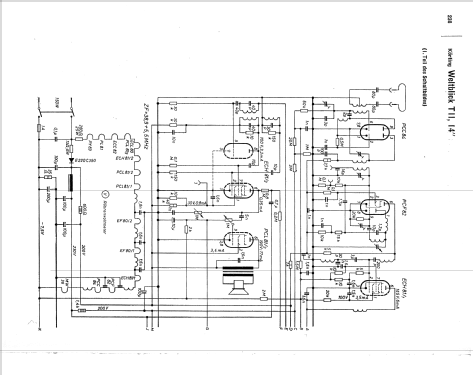

Weltblick II 113/12; Neckermann-Versand (ID = 198231) Television

Weltblick II 113/12; Neckermann-Versand (ID = 198232) Television
Weltblick II 113/12; Neckermann-Versand (ID = 1560019) Television Weltblick II 113/12; Neckermann-Versand (ID = 1560020) Television
Weltblick II 113/12; Neckermann-Versand (ID = 1560022) Television Weltblick II 113/12; Neckermann-Versand (ID = 1676444) Television
Weltblick II 113/12; Neckermann-Versand (ID = 1560025) Television Weltblick II 113/12; Neckermann-Versand (ID = 1560026) Television
Weltblick II 113/12; Neckermann-Versand (ID = 1560023) Television Weltblick II 113/12; Neckermann-Versand (ID = 1370335) Television
Weltblick II 113/12; Neckermann-Versand (ID = 1370336) Television Weltblick II 113/12; Neckermann-Versand (ID = 1370337) Television
Use red slider bar for more.
Weltblick II 113/12; Neckermann-Versand (ID = 1560019) Television
Neckermann-Versand: Weltblick II 113/12 [Television] ID = 1560019 933x745
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weltblick II (2) 113/12, Neckermann-Versand KG; Frankfurt a.M.

Country:  Germany
Manufacturer / Brand:  Neckermann-Versand KG; Frankfurt a.M.
Brand

Twen Tone
Year: 1955 Category: Television Receiver (TV) or Monitor
Valves / Tubes 15: PCC84 PCF82 ECH81 EF80 EF80 PCL81 ECL80 PCL81 ECC82 PL81 PY83 EY51 ECH81 PCL81 MW36-44
Semiconductors (the count is only for transistors) GSD5/40 Tr.Gl.=Metal-rectif.
Main principle Superhet with RF-stage; ZF/IF 38900/5500 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Weltblick II 113/12 - Neckermann-Versand KG;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 370 x 530 mm / 19.7 x 14.6 x 20.9 inch
Notes

Synchron-Detektor-Schaltung (Syntektor) im Tonteil. Nur VHF Band I und III.
Hersteller: Körting für Neckermann KG, Frankfurt a.M.

Mit Ausnahme der Bildröhre identisch zu Körting Weltblick Standard I 113/10

Net weight (2.2 lb = 1 kg) 19.3 kg / 42 lb 8.2 oz (42.511 lb)
Price in first year of sale 495.00 DM
Source of data -- Original prospect or advert
Mentioned in -- Original-techn. papers. (Körting Fernsehempfänger 1954/55)
Literature/Schematics (1) Lange, Schaltungen der Funkindustrie (Band 6)
