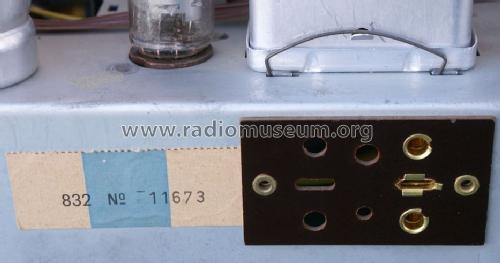

832; Kuba Kuba-Imperial, (ID = 1613162) Radio 832; Kuba Kuba-Imperial, (ID = 1613161) Radio
832; Kuba Kuba-Imperial, (ID = 1620420) Radio 832; Kuba Kuba-Imperial, (ID = 1620421) Radio
832; Kuba Kuba-Imperial, (ID = 1620422) Radio
Use red slider bar for more.
832; Kuba Kuba-Imperial, (ID = 1613158) Radio
Kuba Kuba-Imperial,: 832 [Radio] ID = 1613158 933x507
Select picture or schematic to display from thumbnails on the right and click for download.
For model 832, Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel:
Bilder nachbearbeitet

Country:  Germany
Manufacturer / Brand:  Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
alternative name

Imperial Kuba
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: ECC85 ECH81 EF89 EABC80 EM85 EM85 EBC91 EL84 EL84 EZ81
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out 12 W (unknown quality)
from Radiomuseum.org Model: 832 - Kuba Kuba-Imperial, G.
Material Metal case
Shape Chassis only or for «building in»
Notes

Push-Pull-Gegentaktendstufe, Dynamic Expander (EBC91, EM85), es ist eine Variante des Körting Dynamic 830W.

External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 2, Ernst Erb
